10 Inch 1500W Electric Scooter Motor Controller LCD Display Accelerator Set
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | LUNYEE |
| Part Type | Conversion Kit |
| Voltage | 48 V |
| MPN | Does not apply |
| Country/Region Of Manufacture | China |
| Power | 1000W1200W1500W |
| Torque | 30NM |
| Speed | 50KM/H |

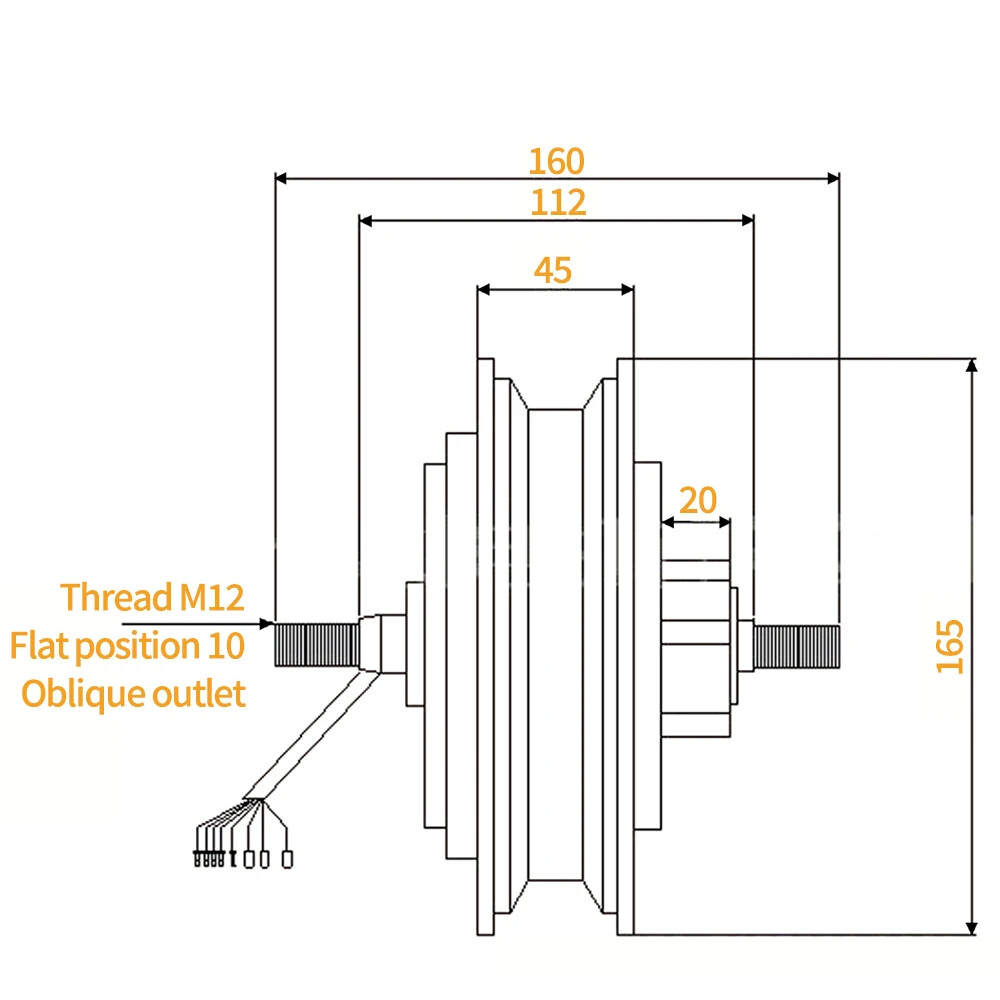

| Fork Width | 112MM |
| Shaft Design | dual shaft |
| Number Of Pole Pairs | 15 pairs |
| Height Of Magnets | 35mm |

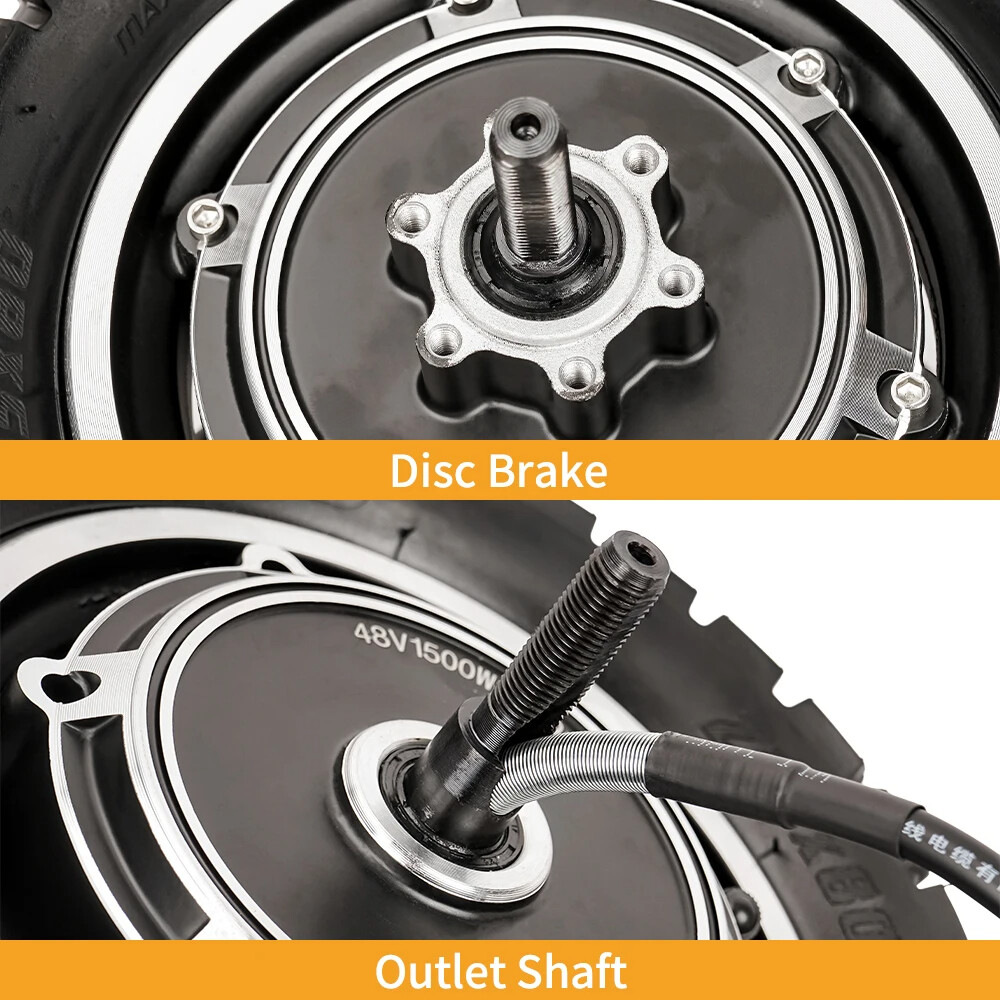

| Brake Design | disc brake |
| Controller Current Limit | 30A |

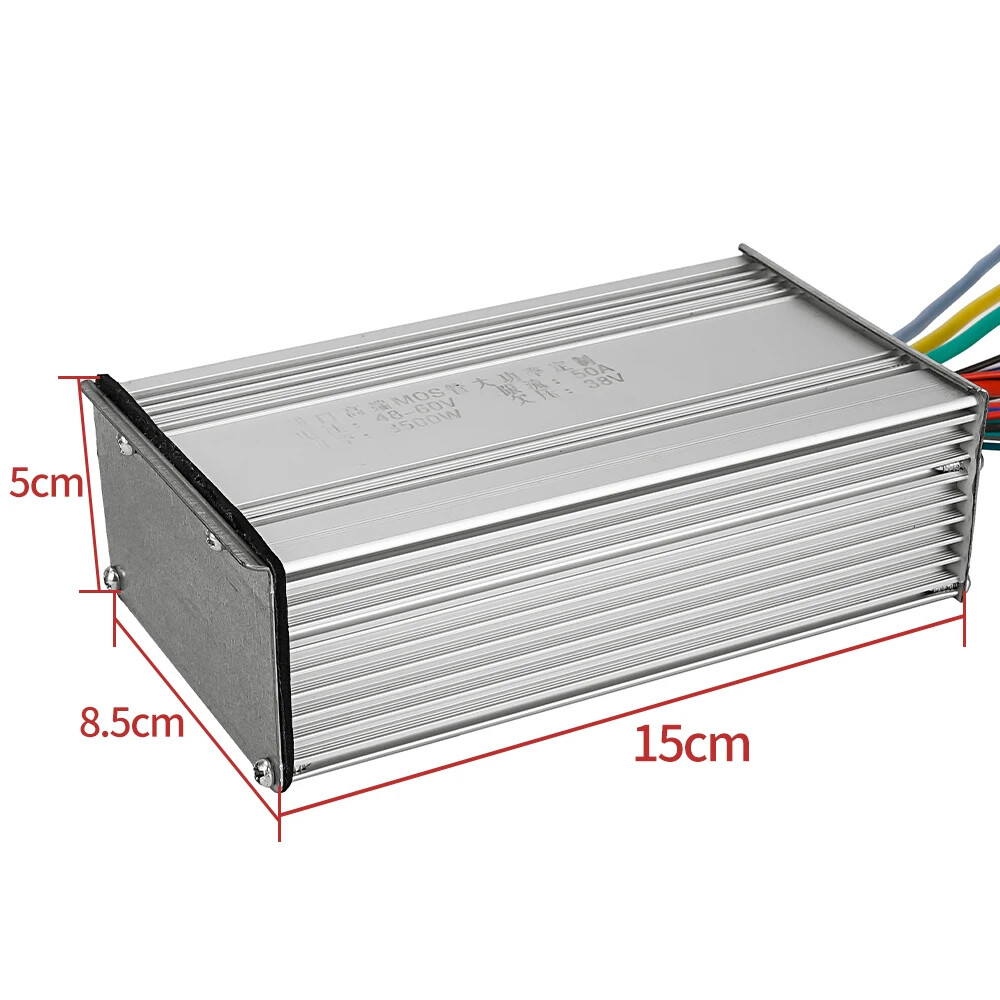

| Controller Size | 145*80*50MM |

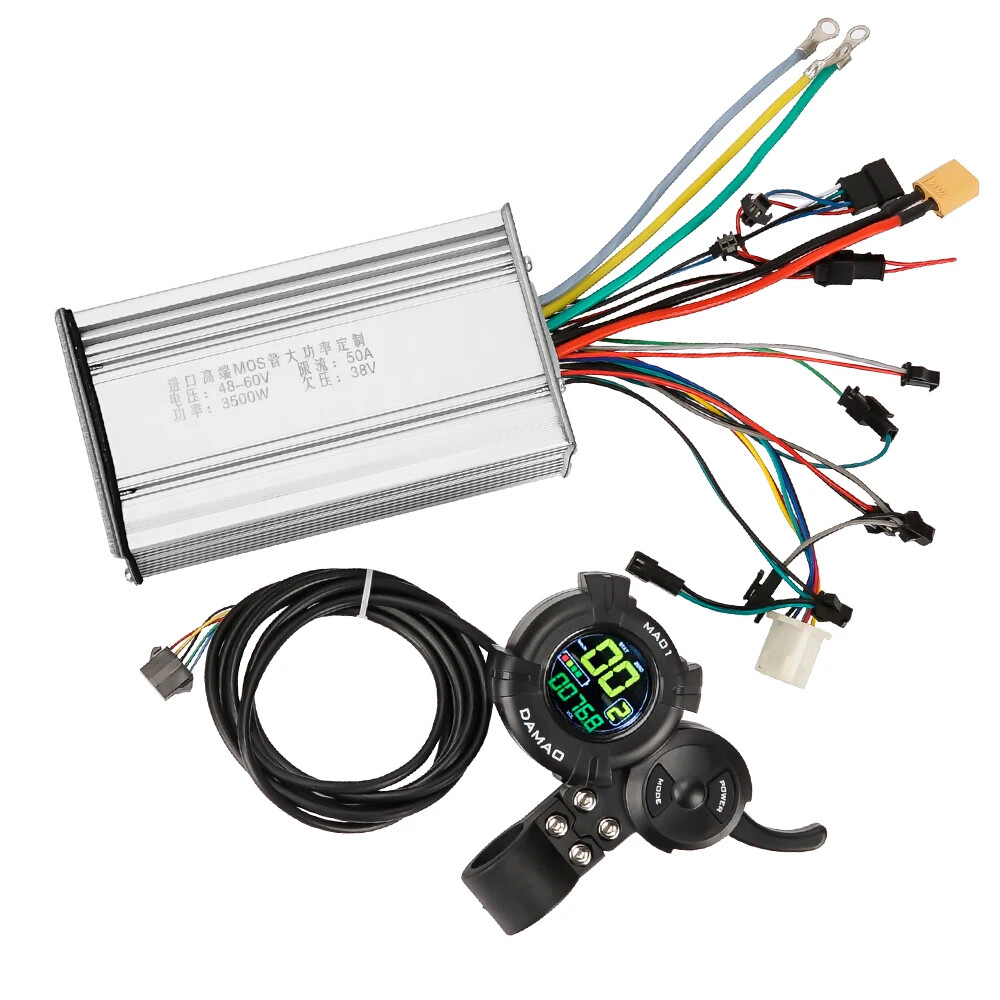

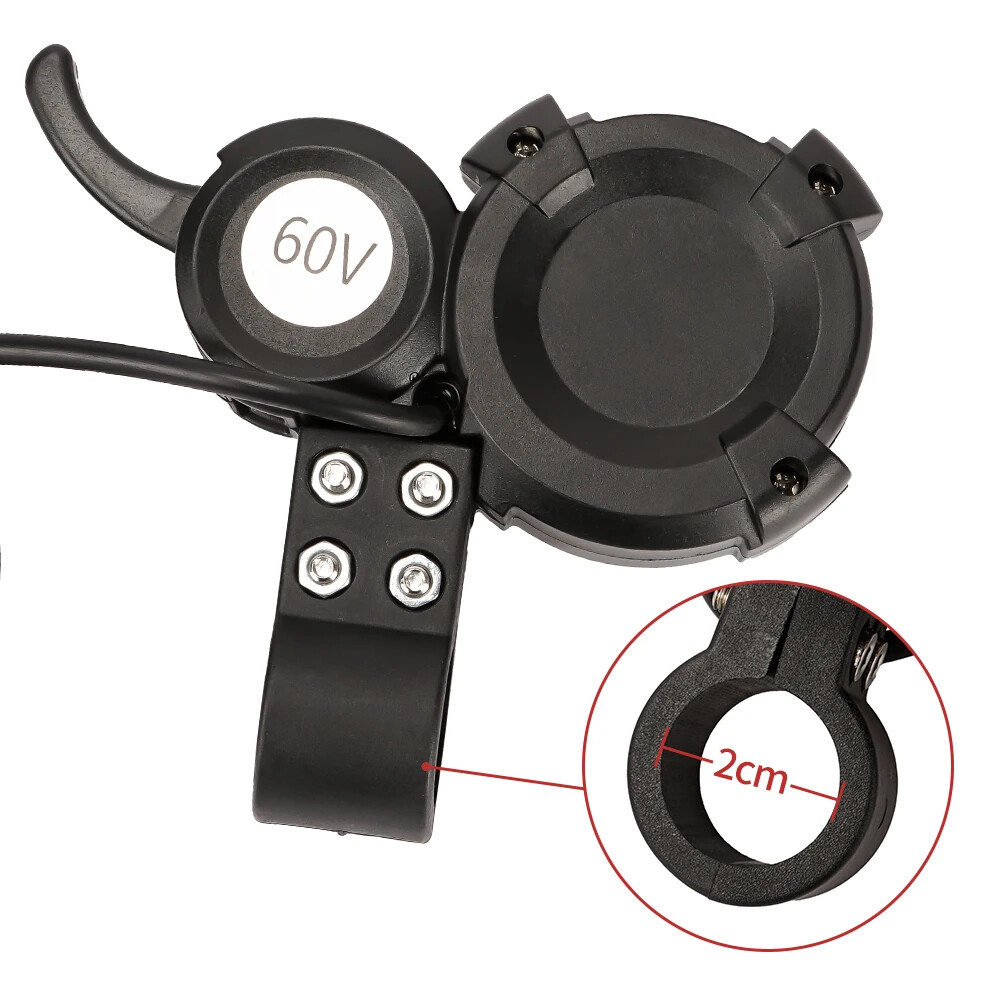

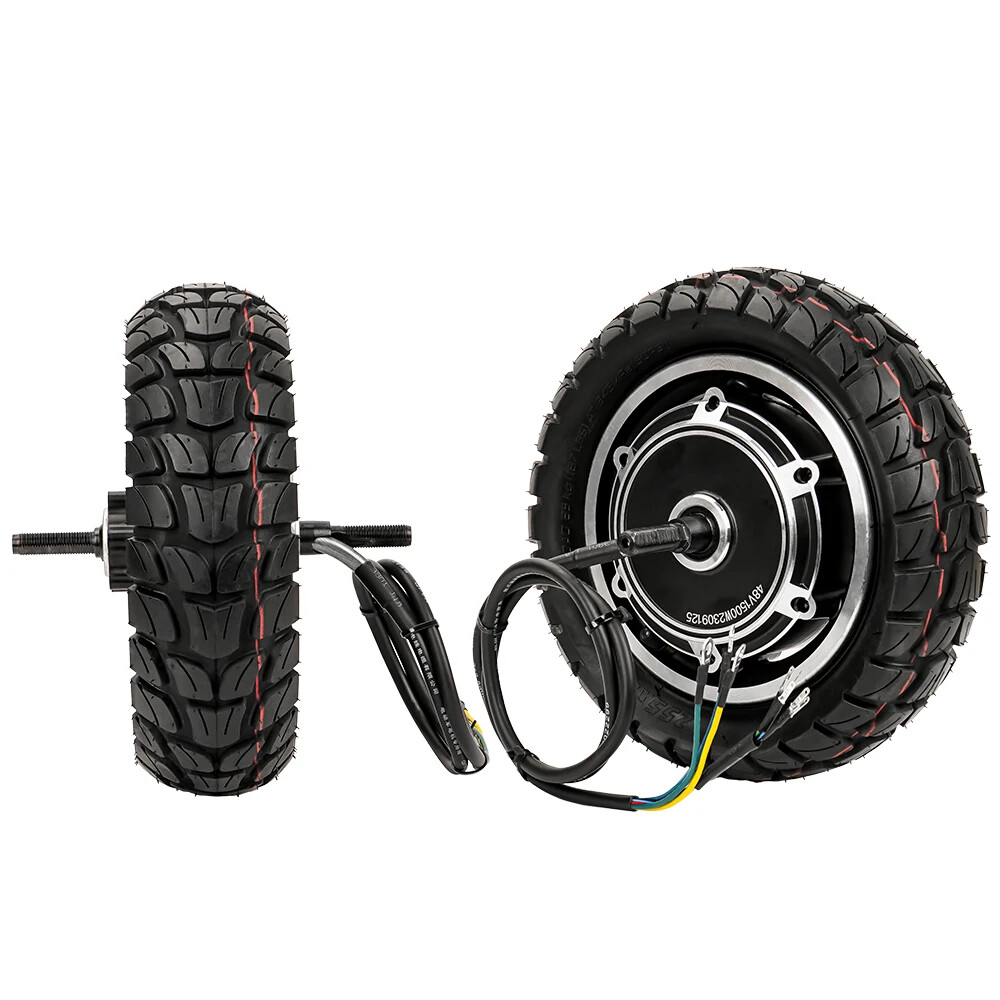

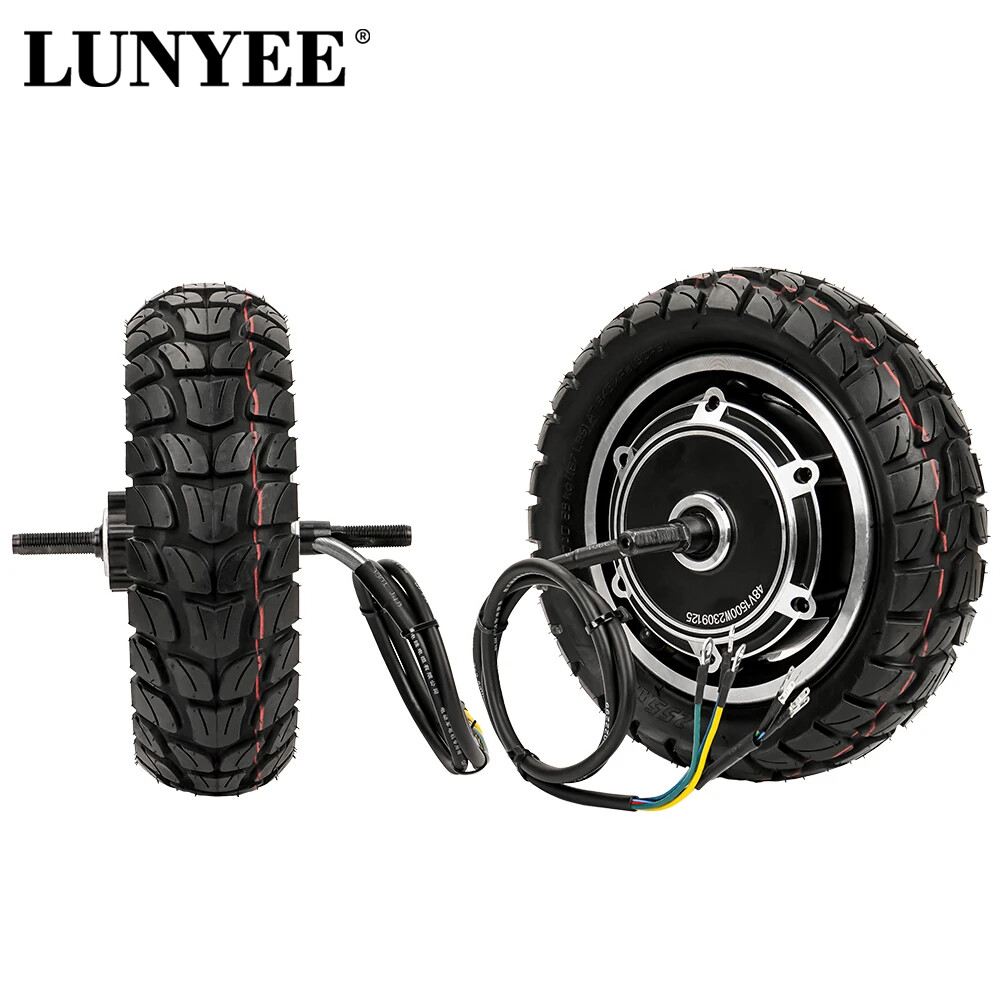

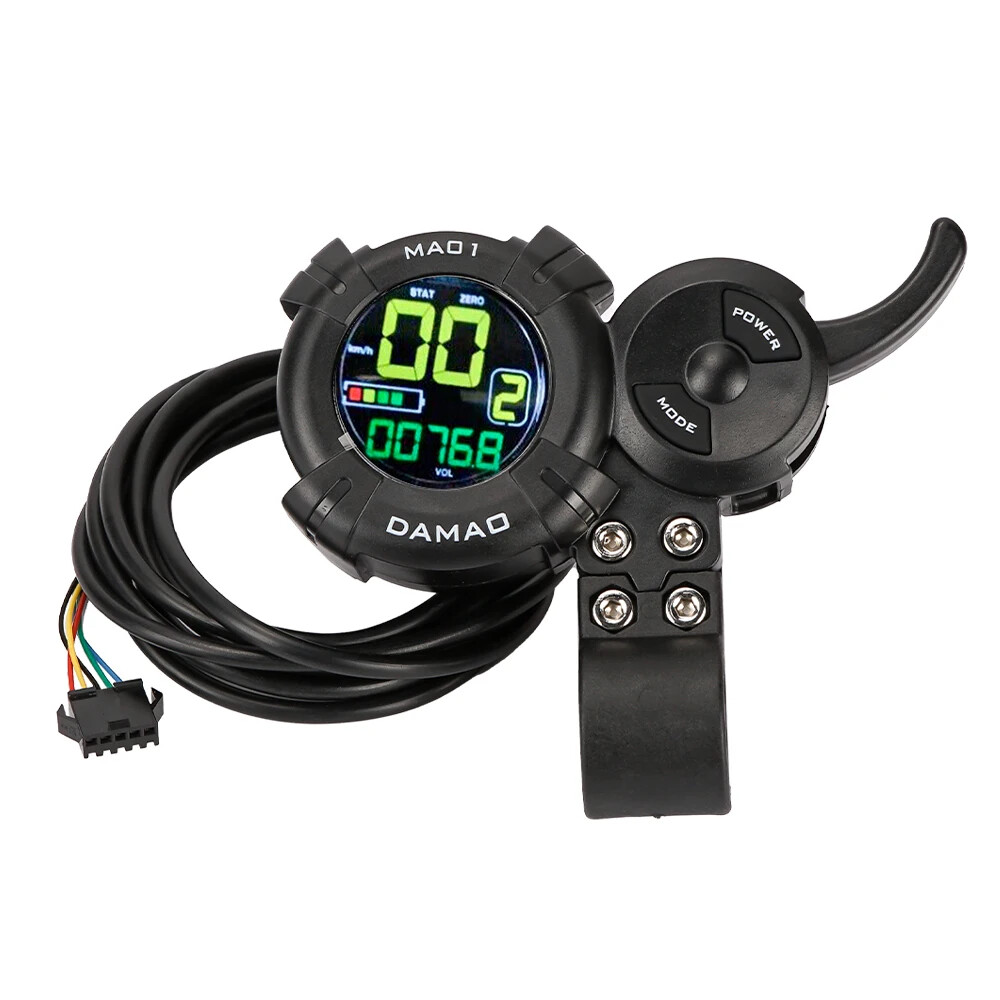

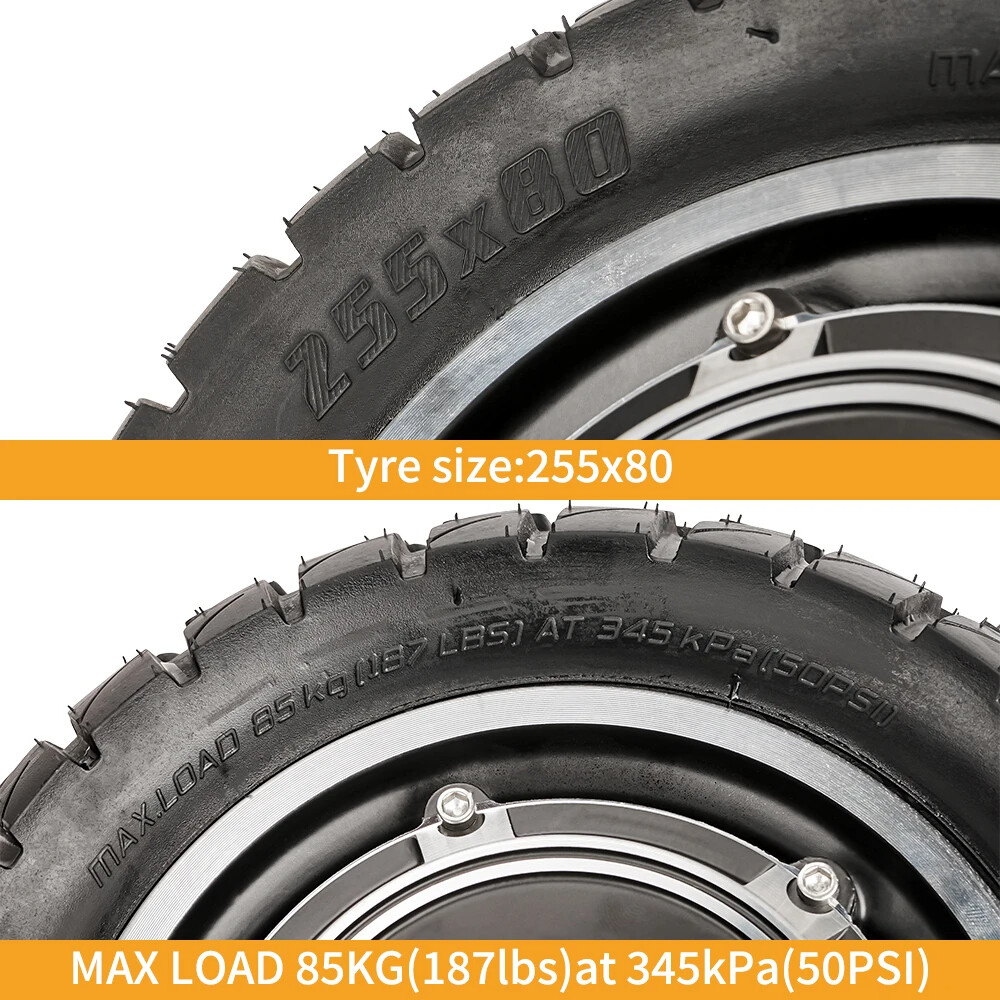

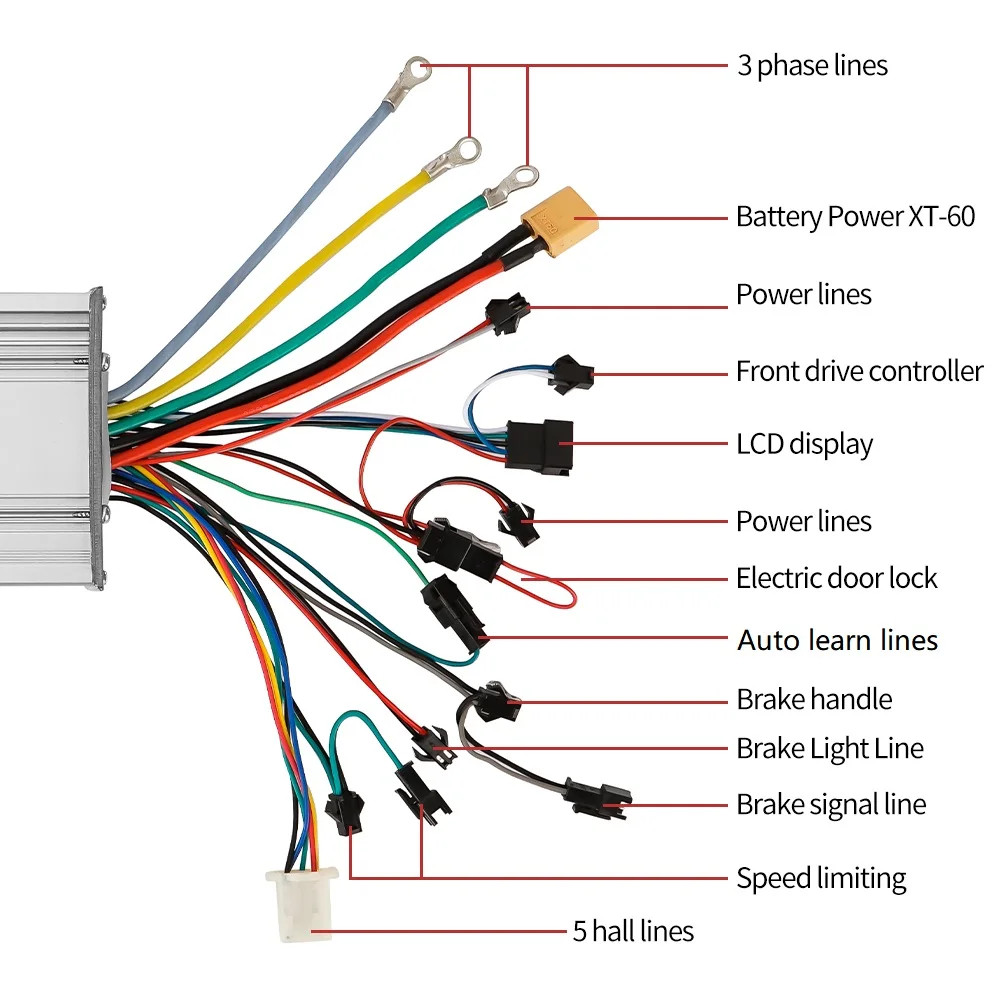

Voltage: 48V60V Power:1000W1200W1500W Rated speed: 48V(1250rpm)60V(1500rpm) Torque: 30NM Speed: 50KM/H Fork width:112MM Shaft design:dual shaft Number of pole pairs: 15 pairs Height of magnets: 35mm Brake design:disc brake Controller current limit: 30A Controller size:145*80*50MM Off-road pattern inner and outer tires,inner and out inflatable tyre 80/65-6 PACKING LIST： 1* 10 inch off-road hub motor wheel 1* 30A controller 1* LCD display with accelerator 1 pair brake level 1* disc brake set Appearance size and material： The product shell is ABS, and the LCD transparent window is imported high-hardness acrylic, the hardness value is equivalent to ten tempered glass. Function description： Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting, driving mode setting, voltage level setting, controller current limit setting. 1. Display function: speed display, power indicator, fault prompt, total mileage, single mileage. 2. Control and setting functions All contents of the display screen. (full display within 1S after power-on) How to setting LCD display: P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest; P02: mileage unit, 0: KM; P03: Voltage level: 24V, 36V, 48V, default 36V; P04: sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute; P05: Power assist gear: 0: 3rd gear mode; P06: wheel diameter: unit, inch; accuracy: 0.1; P07: Speed measuring magnetic steel number: range: 1-100; P08: Speed limit: range 0-100km/h, 100 means no speed limit; 1. Communication state (controller control): the driving speed is maintained at the set value, 6 Error: ±1km/h; (both assist and handle speed limit) Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically convert to the correct mile value, but the speed limit value data set in this menu under the mile interface No conversion, inconsistent with the actual displayed mile speed limit value; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start; P10: Driving mode setting 0: Power-assisted drive (the amount of power output is determined by the power-assisted gear, and the handle is invalid at this time). 1 : Electric drive (driven by turning the handle, at this time the power assist gear is invalid). 2: Power assist drive and electric drive coexist at the same time (the electric drive is invalid in zero-start state). P11: Assist sensitivity setting 1-24 P12: Starting strength setting 0-5 P13: Power-assisted magnetic steel plate type setting 5, 8, 12 grains of magnetic steel three types P14: Controller current limit setting Default 12A Range: 1-20A P15: controller undervoltage value P17: Automatic cruise selection, 0 without automatic cruise, 1 with automatic cruise. P18: ABS brake strength selection, generally adjustable from 0 to 3 levels Fault code: Fault status Remarks 0. Normal state 1. Reserved 2. brake 3. Power sensor failure (riding sign) 4.6KM/H cruise 5. Real-time cruise is not realized here 6. Battery undervoltage 7. Motor failure 8. Handlebar failure 9. Controller failure 10. Communication reception failure 11. Communication sending failure 12. BMS communication failure 13. Headlight failure The LCD display shows ODO:Total mileage TRIP:Single mileage VOL:Digital voltage CUR:Digital current RM(requires battery protection board software support): Remaining mileage TIME:Running time ERRO:Fault code
