350W Electric Bicycle EBike Motor Conversion Kit Hub Cycling 36V Rear Wheel Moto
USD 120.86 USD
Specifications
| Brand | Unbranded |
| Part Type | Brushless Motor |
| Color | Silver, Black |
| Speed Gears | Three(80%,100%,110%) |
| Motor Efficiency | ≥78% |
| Rated Voltage | 36V DC |
| Power | 350W |
| Model | MY1016Z3 |
| Suspension Type | Rear |
| Special Feature | Electric |
| Torque | About 10.85N·m |
| Unload Current | ≤2A |
| Unloaded Speed | 3850Rpm |
| Rated Current | 12.5A |
| Rated Speed(Before Speed Reduction） | 3000RPM |
| Rated Speed(After Speed Reduction) | 330RPM |
| Gear Ratio: | 9.78:1 |
| Protect Grade | IP33 |
| Motor Controller Voltage | 1.1-4.2V |
| Motor Controller Max Current | 16A |
| Motor Controller Powe | 350W |
| Under Voltage | 20V |
| Brake | Low Level |
| Suitable Bike Type | Spoke Wheel Bike |
| Suitable Bike Wheel Diameter | ＜68.58cm/27inch |
| Suitable Bicycle Hub Diameter | ＜35mm/1.3inch |
| Assembly Required | Yes |
| Chainwheel Outer Diameter | 134mm/5.27inch |
| Chainwheel Inner Diameter | 35mm/1.38inch |
| Chainwheel Teeth Space | 12.7mm/0.5inch |
| Gross Weight | 4.7kg/10.36lbs |
Power: 350W. Its aluminum housing, pure copper coils and rare earth magnet steel make it sturdy and durable, and an ideal choice for your electric bike. Rated Speed(Before Speed Reduction):3000RPM. Rated Speed(After Speed Reduction): 330RPM.
Related Items
SunTour XC-SE Scott Pederson Rear/RIGHT Partial Cantilever NOS 71mm Pads
Light Weight Plastic And Metal Brakes Handle Grip With Bells Brakes Component
26″ Fat Tire Electric Bicycle Motor E-Bike Rear Wheel LCD Conversion Kit 48V 1KW

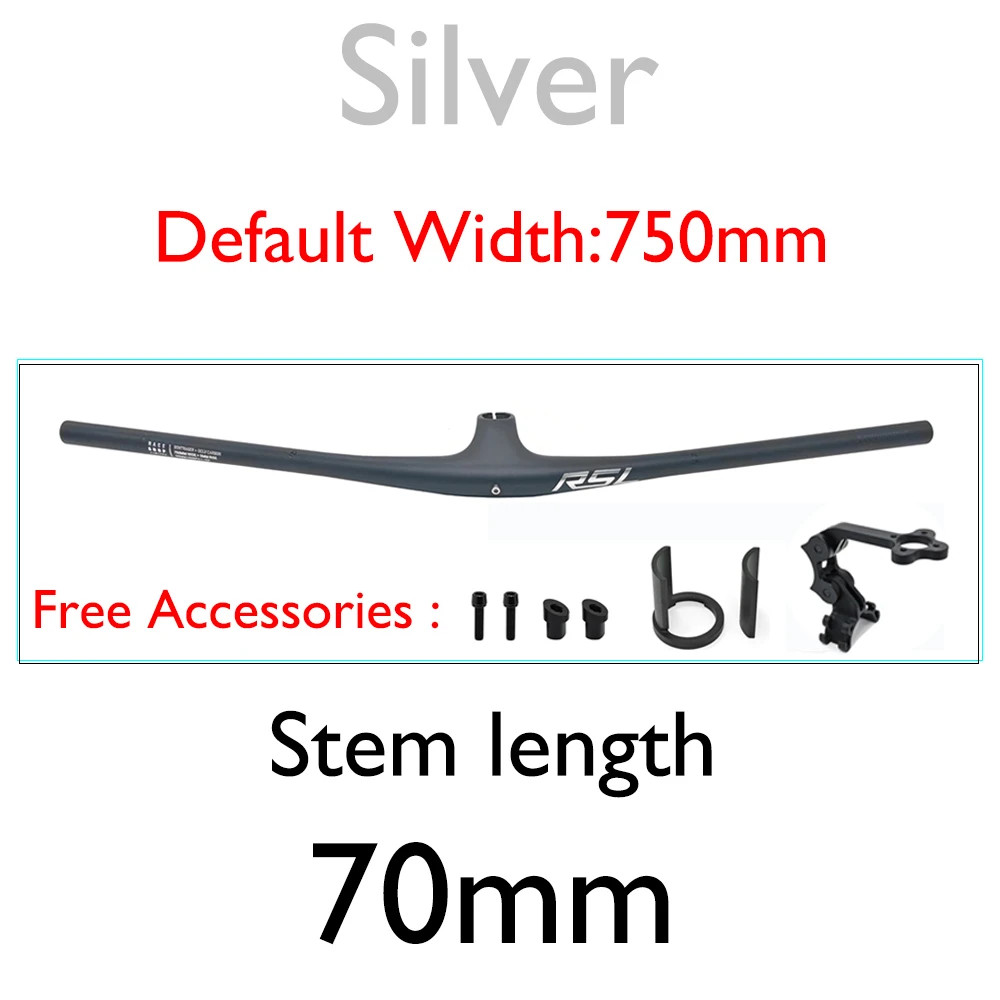

XC Mountain Bicycle Carbon Integrated Handlebars with Stem 13 Degree Flat Bar
