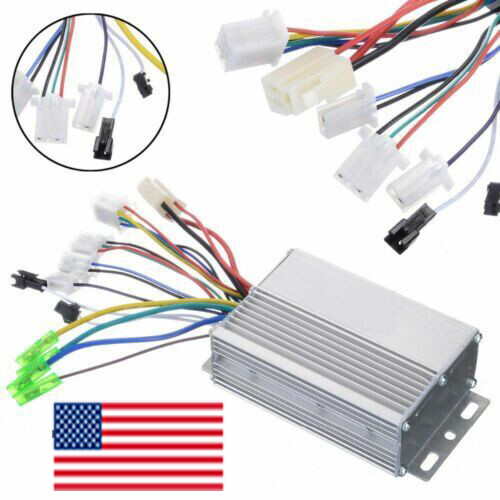

36V/48V 350W Waterproof E-bike Brushless Electric Bicycle Motor Controller DC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Unbranded |
| MPN | Does Not Apply |
| Country/Region Of Manufacture | China |
| Part Type | Electric |
36V-48V 350W controller can work with hall sensor/hall sensorless Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W Limit Current: 17A 1.pointer meter line 2. motor line 3.3-speed line 4.Anti-theft alarm line 5.self-learning line 6.hall line 7.throttle line 8.low brake 9.Anti-theft power line 10.Cruise speed line 11.battery（2 red wires battery +，black battery -） 12.high brake 一.connect the motor line (color to color） 二. connect the battery line(2 red wires :battery + , black:battery-) 三. connect the controller throttle line（color to color） 四. connect the hall line(if motor without hall line, don’t need connect) 五.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.) 六.other functions can be connected as needed.
