48V 1000W Brush Motor Controller Throttle for E-Bicycle ATV Go Kart Motorcycle
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | MY1020 |
| Brand | Unbranded |
| Color | Black |
| Voltage | 48 V |
| Compatible Bike Type | Universal |
| MPN | Does not apply |
| Part Type | Motor |

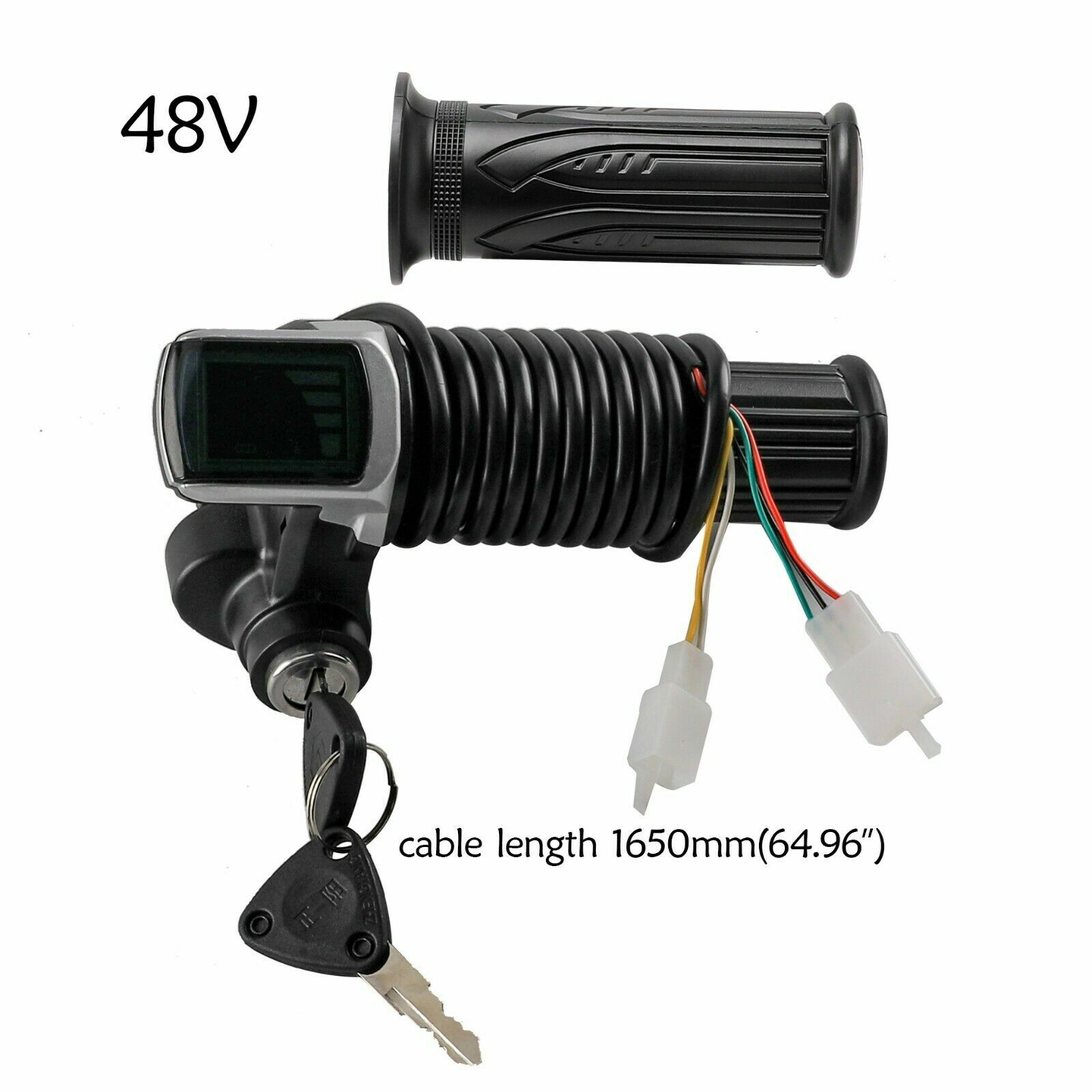

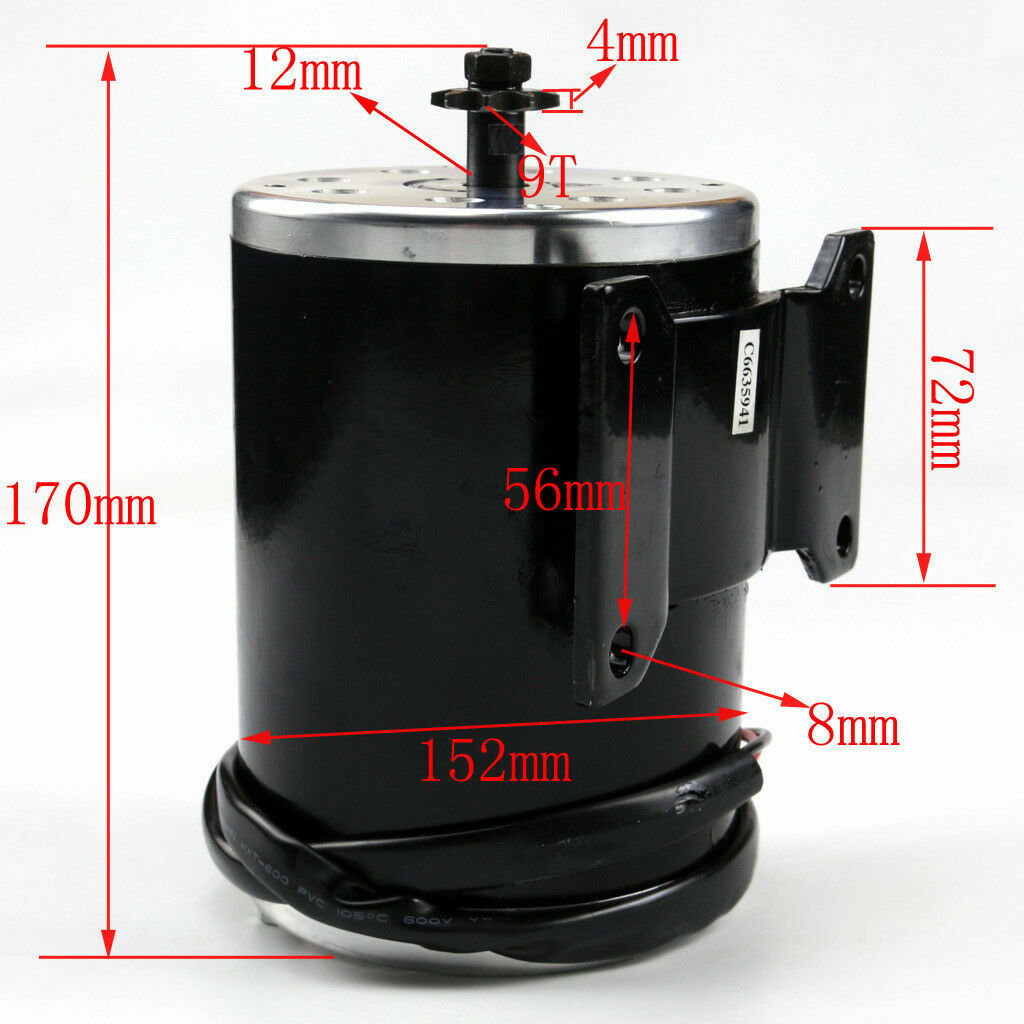

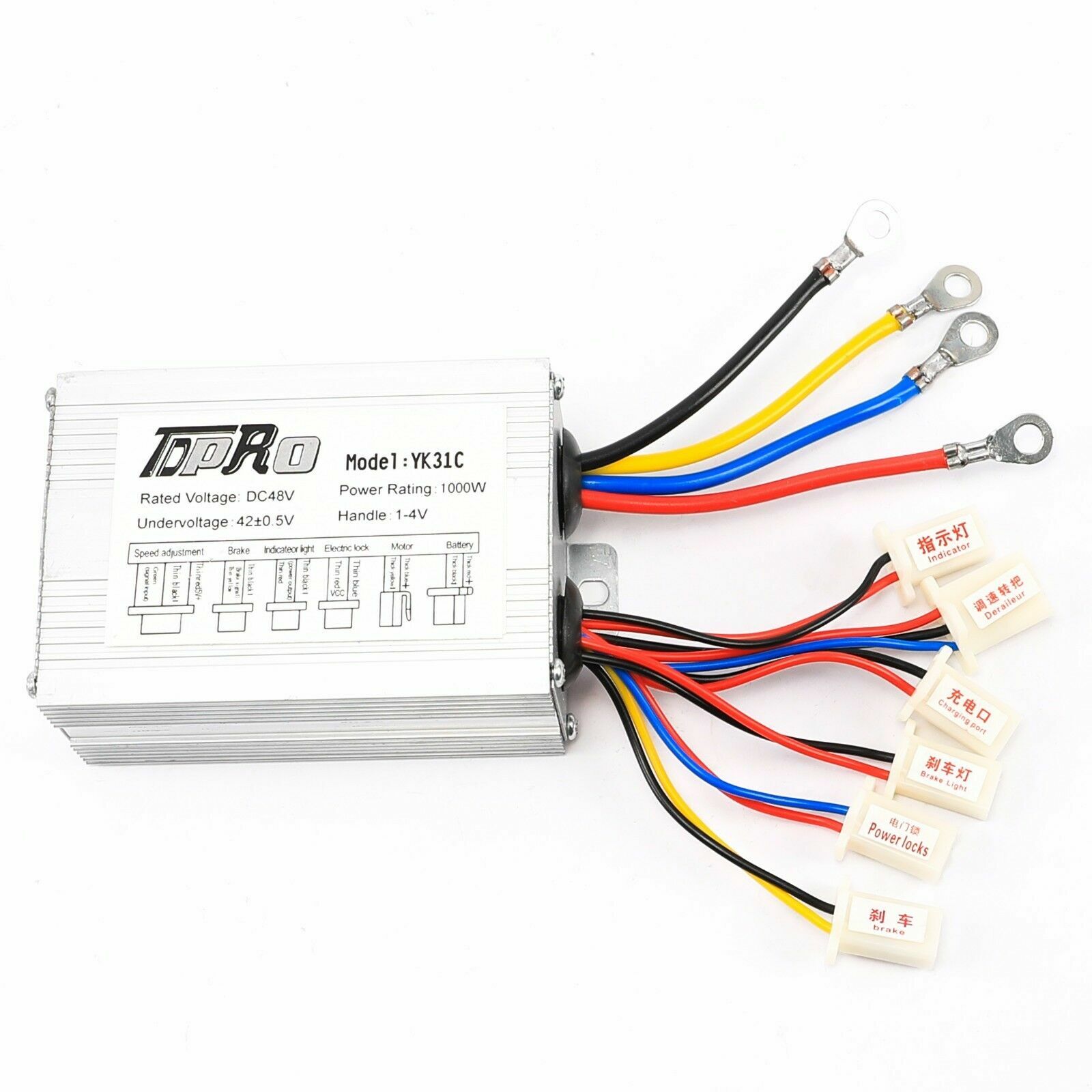

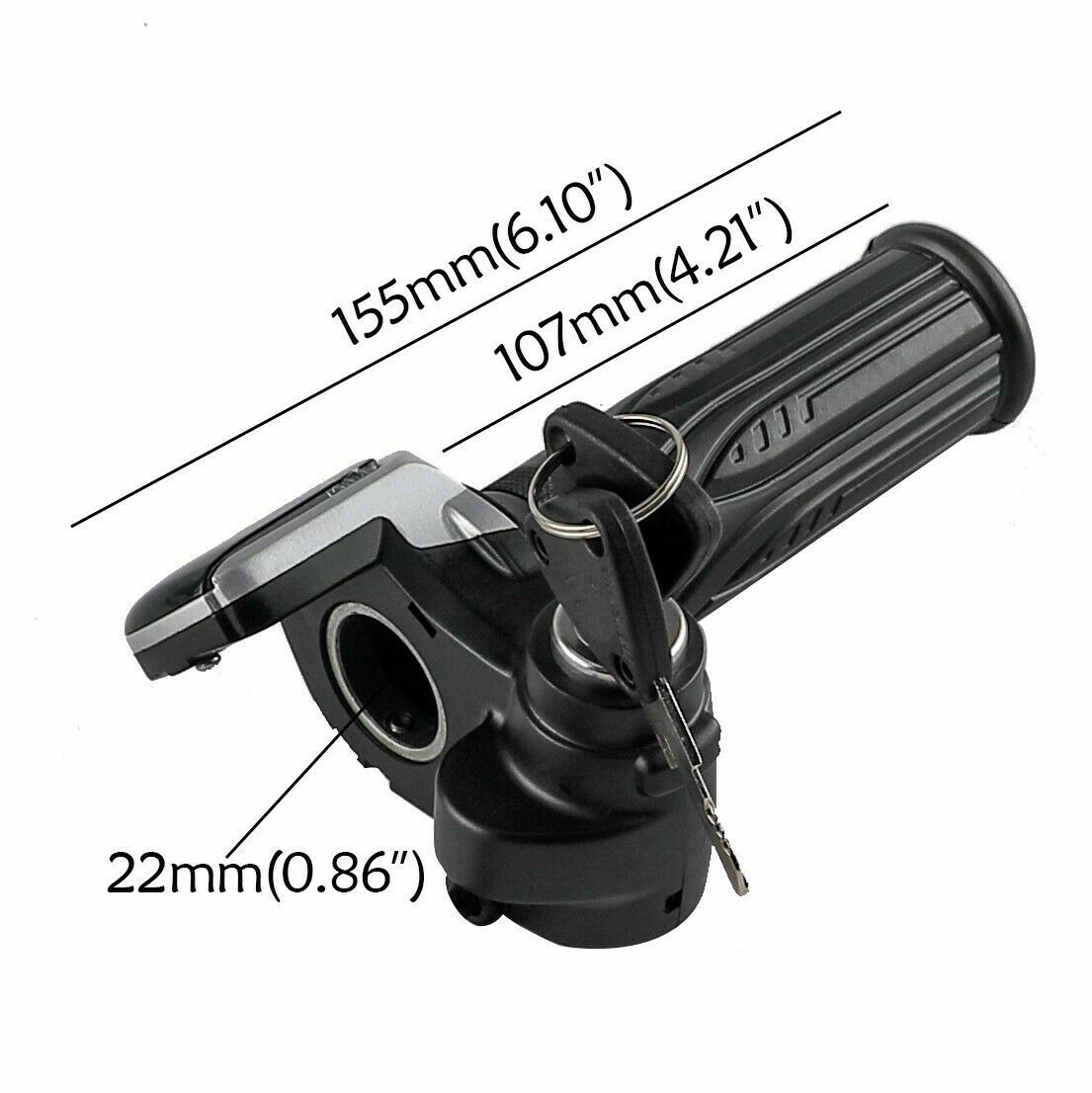

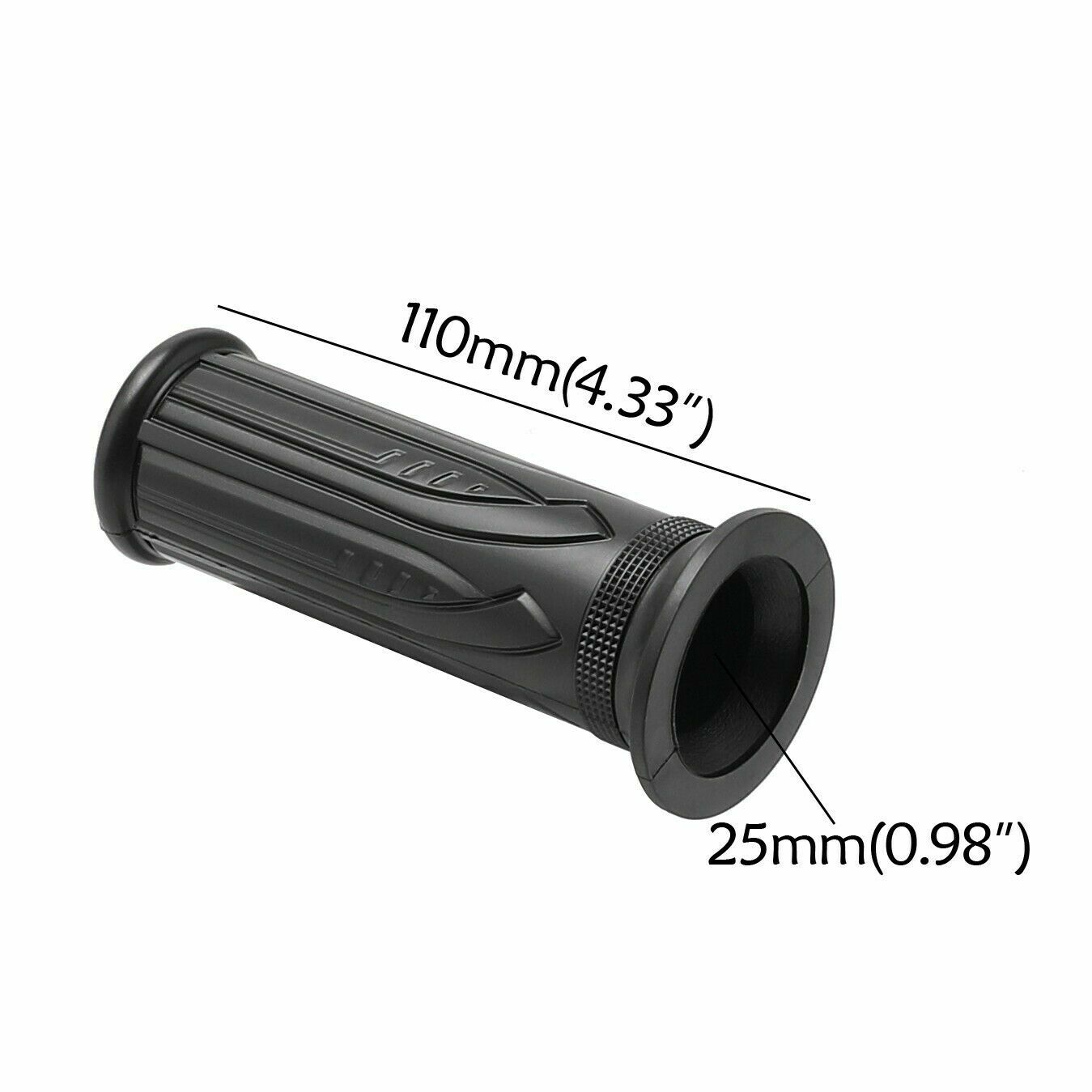

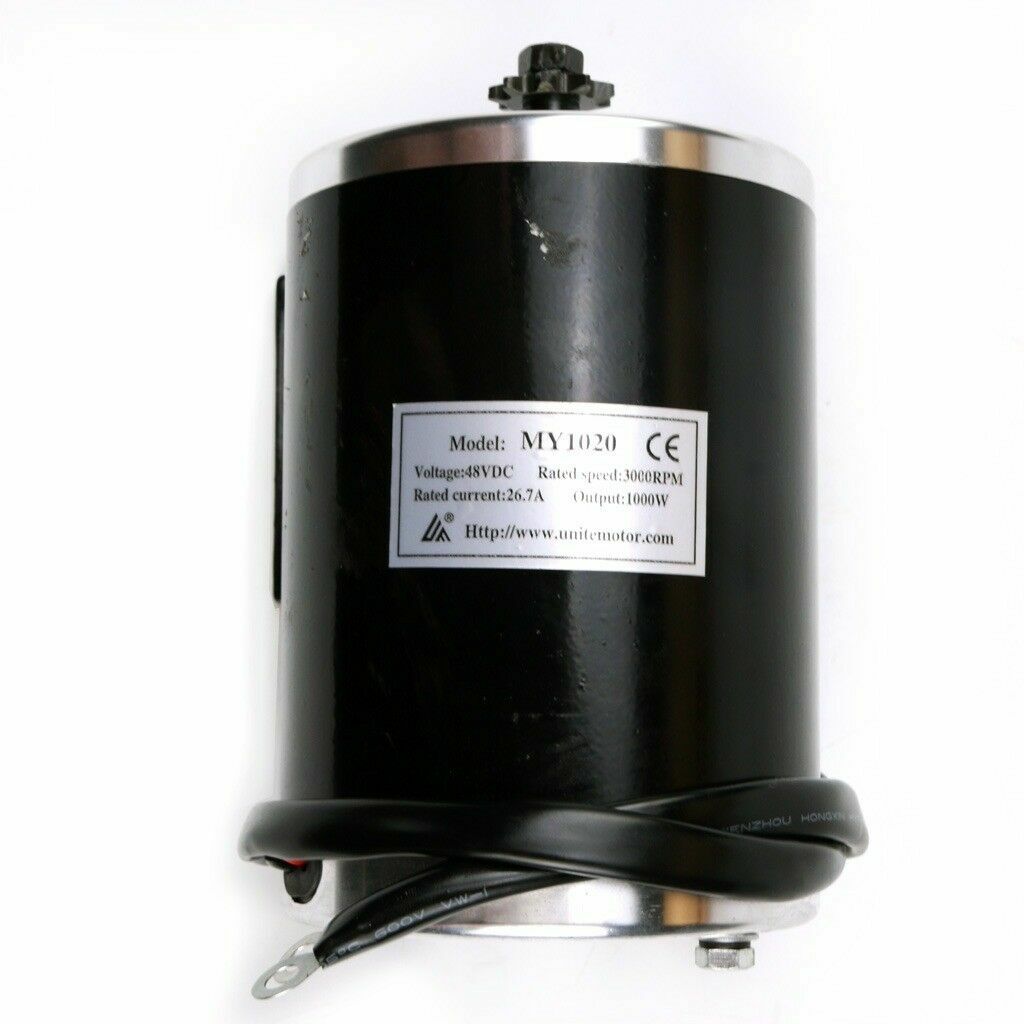

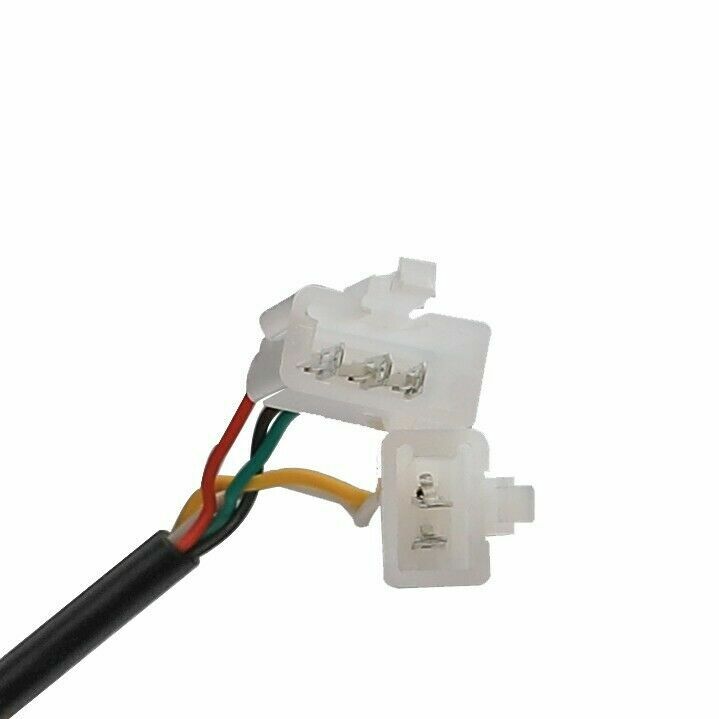

Specifications: Motor: Output: 1000W Rated speed: 3000-3360 RPM Rated voltage: 48V DC Rated current: 26.7A No-load current: ≤2.8A Peak efficiency at 48V: 80 percent Reversible: (w/ polarity swap) Sprocket：T8F 9Tooth Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires. Controller: Rated voltage: 48V DC Match motor: 48V 1000 W Conversion efficency: 95% Under Voltage Protection: 42±0.5V Speed regulator (throttle): 1-4 V Controller Wiring: This controller has 8 connectors, compatible with many 48V bikes with up to 1000W motors 1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle) Package: 1x motor + 1x controller + 1x chain + 1x throttle grips These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.
