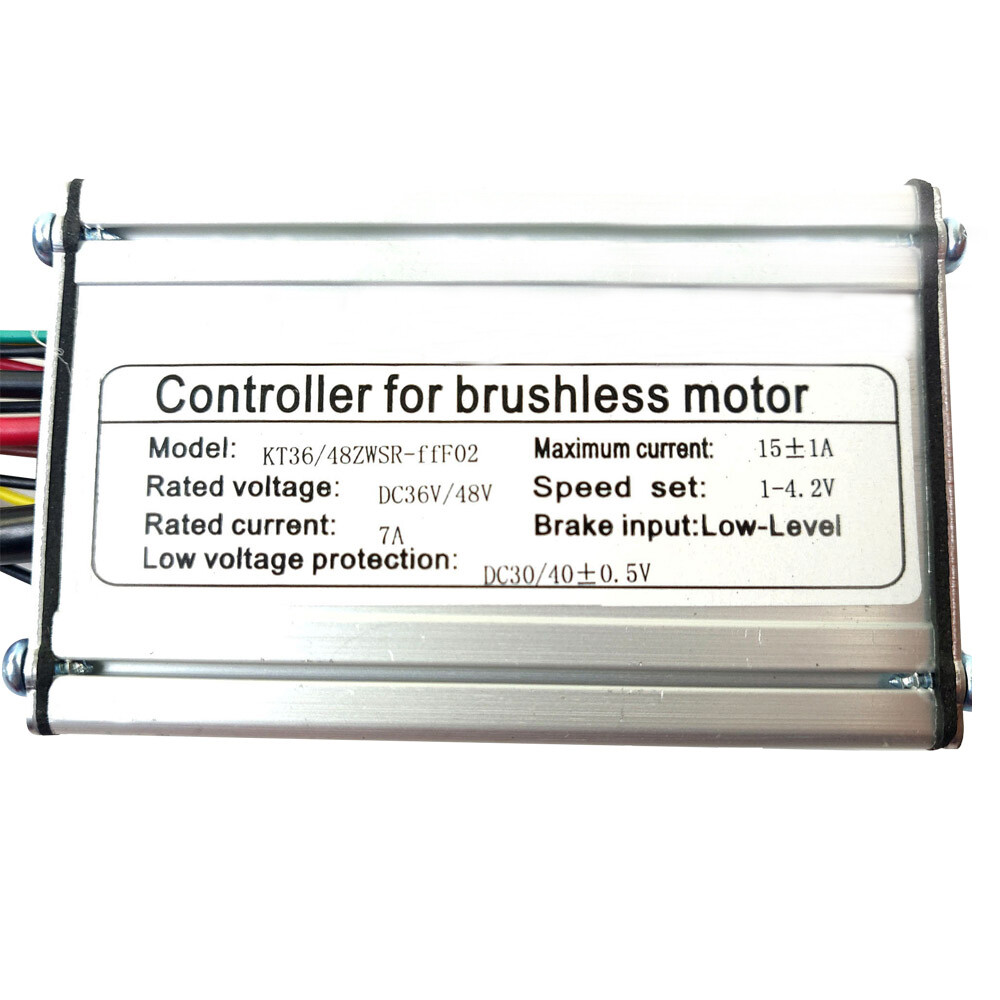

48V 36V 15A Controller for 250W 350W Brushless Motor Electric Bicycle Connectors
USD 34.99 USD
Specifications
| Item Height | 33mm |
| Item Width | 53mm |
| Material | Aluminum Alloy |
| Electric Bike Part Type | Controller |
| Controller Dimension | 8.3 * 5.3* 3.3cm |
| Weight | 350g |
| Mosfets | 6 mosfets |
| Cable Length | all about 10-13cm |
| Maximum Current | 15±1A |
| Rated Voltage | DC36V/48V |
| Speed Set | 1-4.2V |
| Color | Silver |
| Part Type | Electric Controller |
| MPN | KZFS002 |
| Brake Input | Low-Level |
| Type | Controller |
| Item Length | 83mm |
| Low Voltage Protection | DC30/40±0.5V |
| Manufacturer Warranty | 6 months |
| Voltage | 36V/48V |
| UPC | 782910860911 |

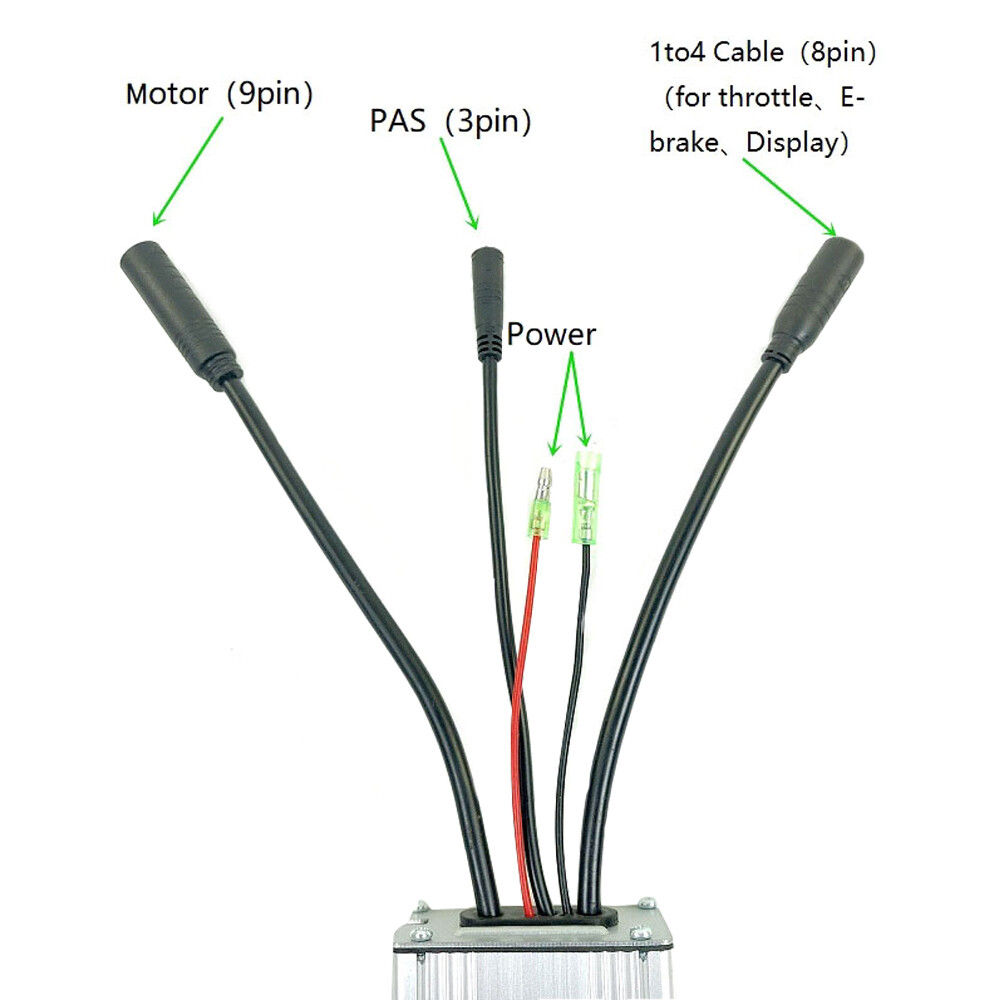

Connectors：. motor (9pin waterproof plug ). Speed set:1-4.2V. 1 to 4 cable(8 pins for throttle, e-bike, display).
