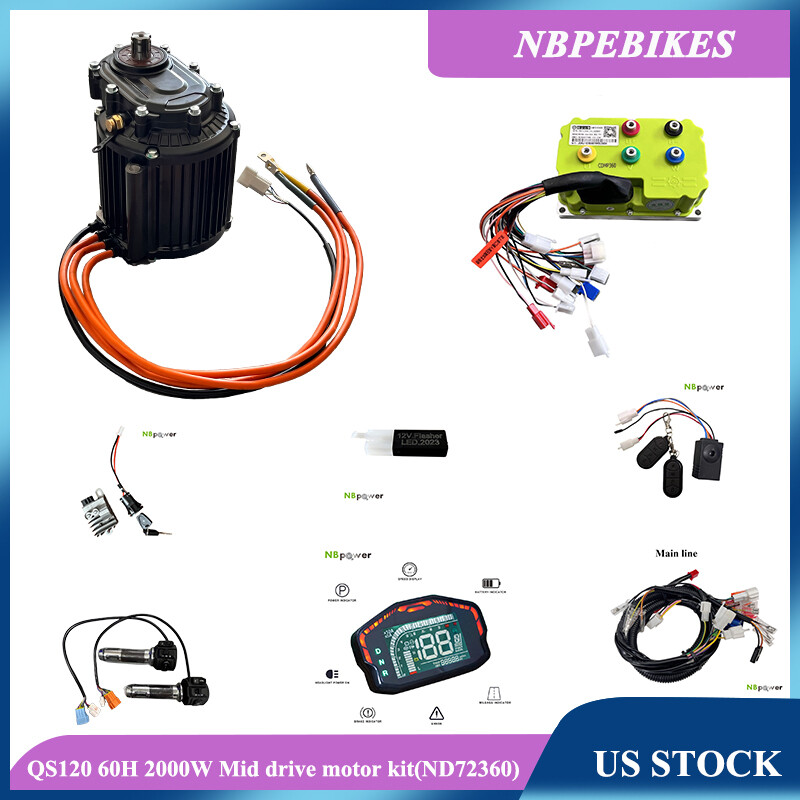

QS120 60H 2000W mid drive motor with gear box(1:2.35 radio)+ND72360 Controller.
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Energy | 2000W |
| Voltage | 72V |
| Color | Black |
| Material | Aluminum |
| Country/Region Of Manufacture | China |
| Part Type | Motor |

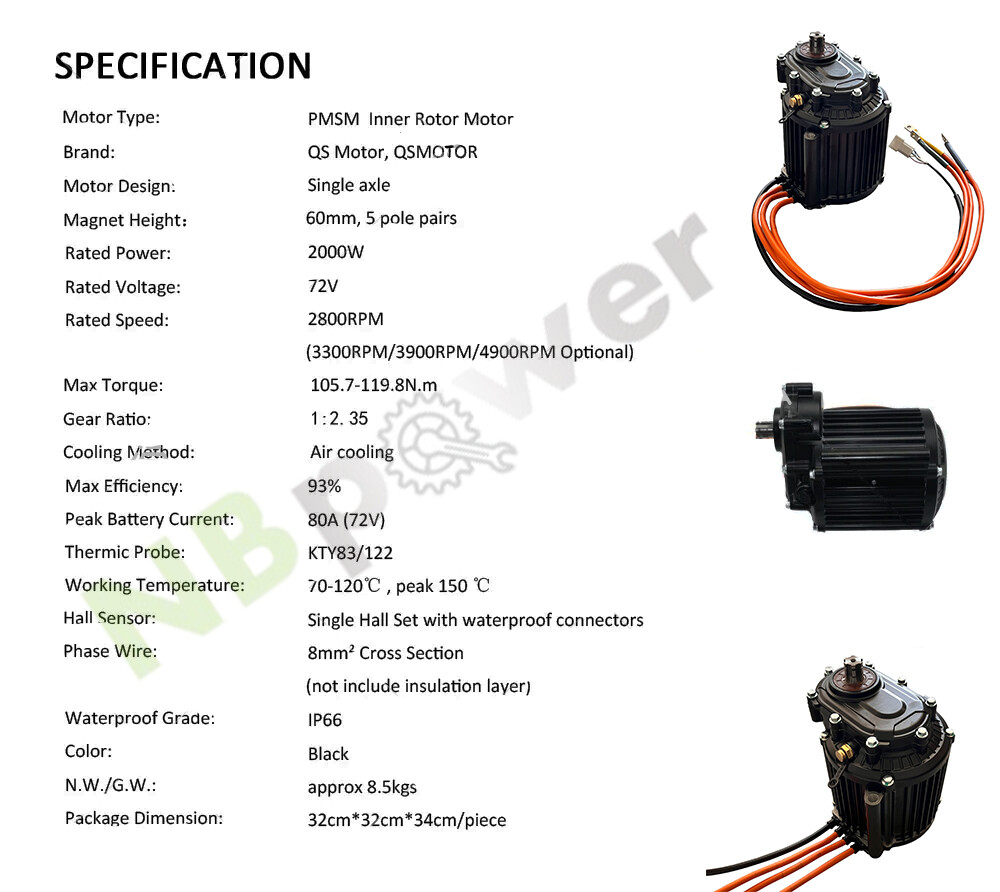

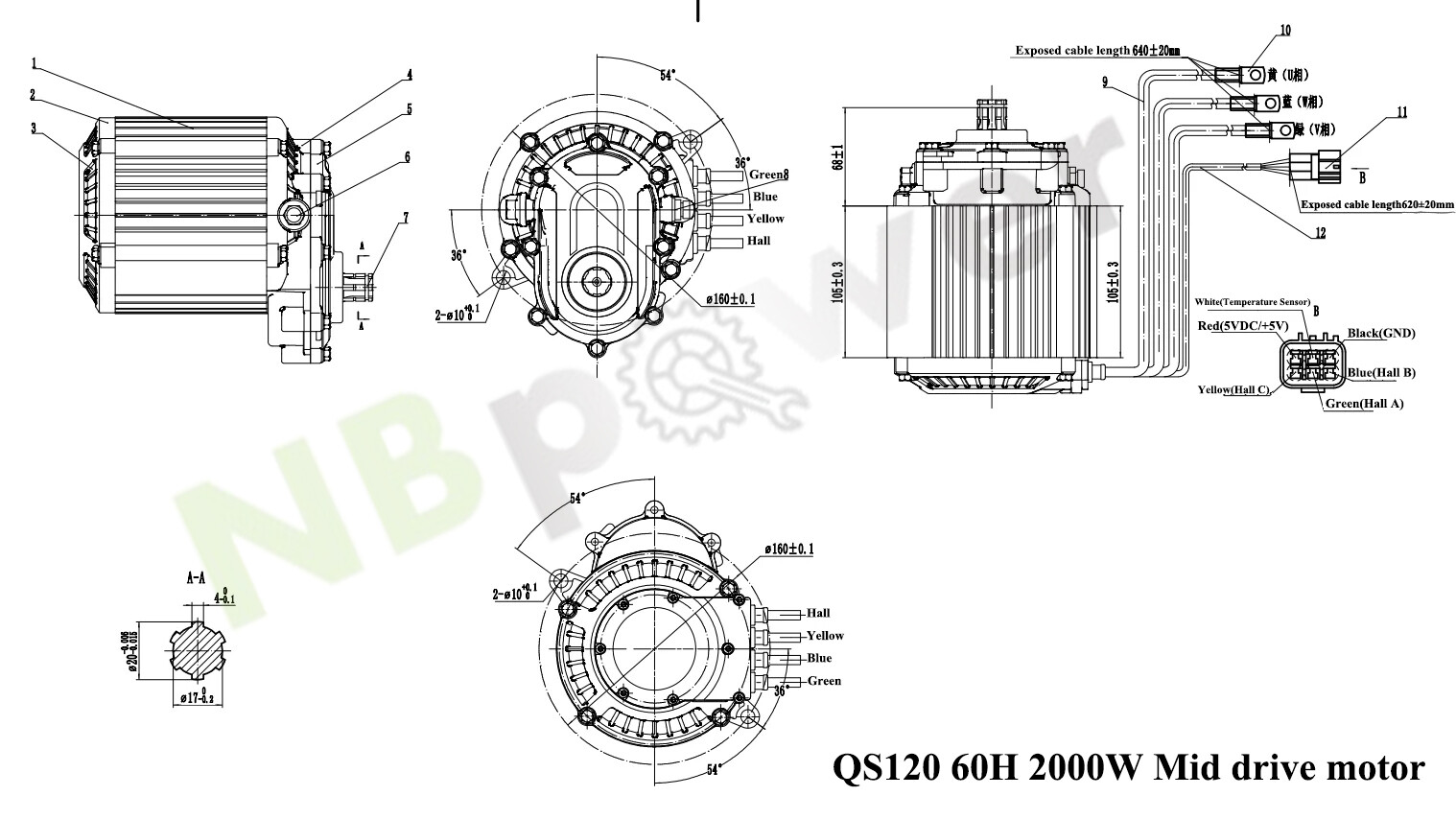

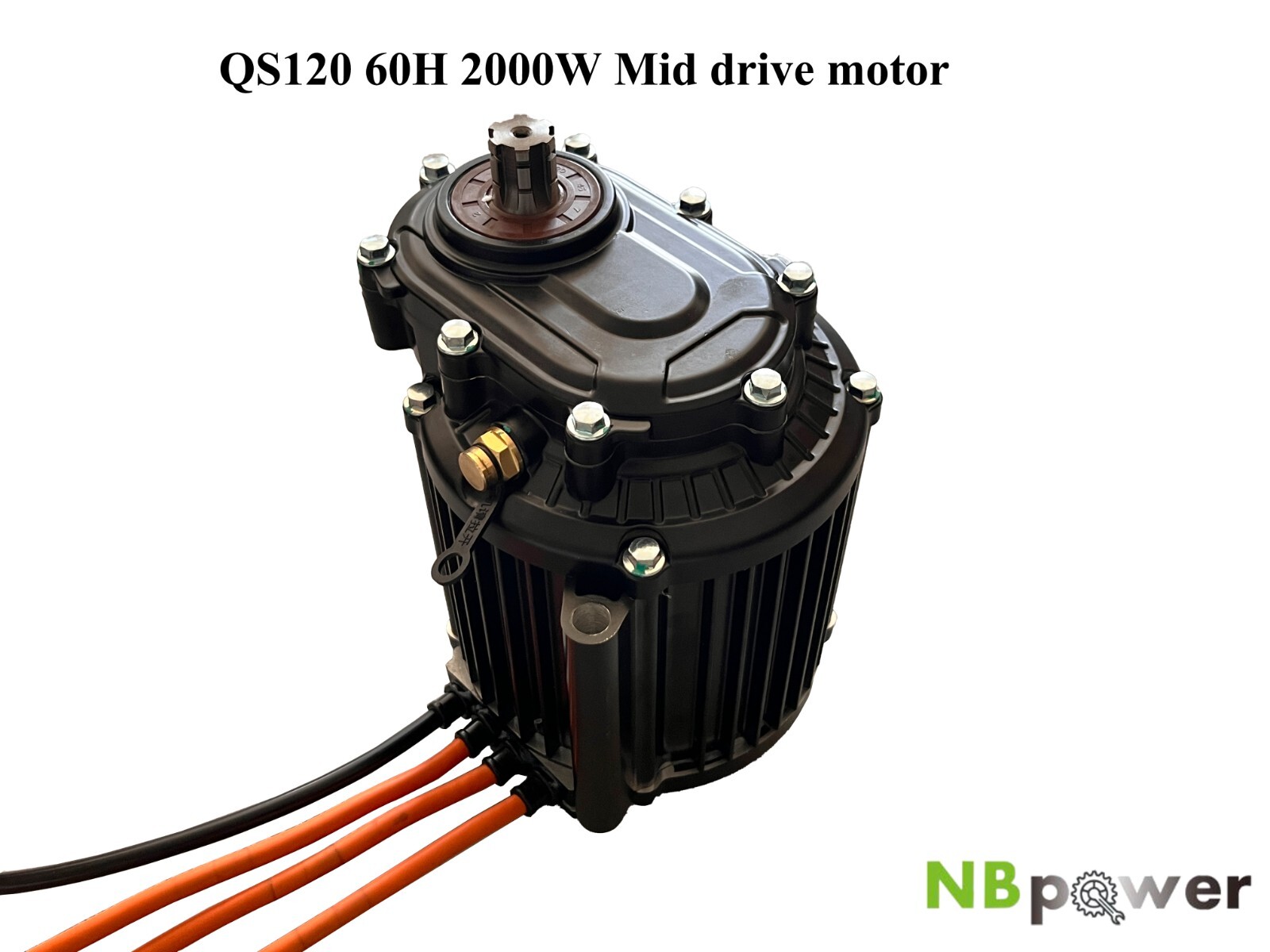

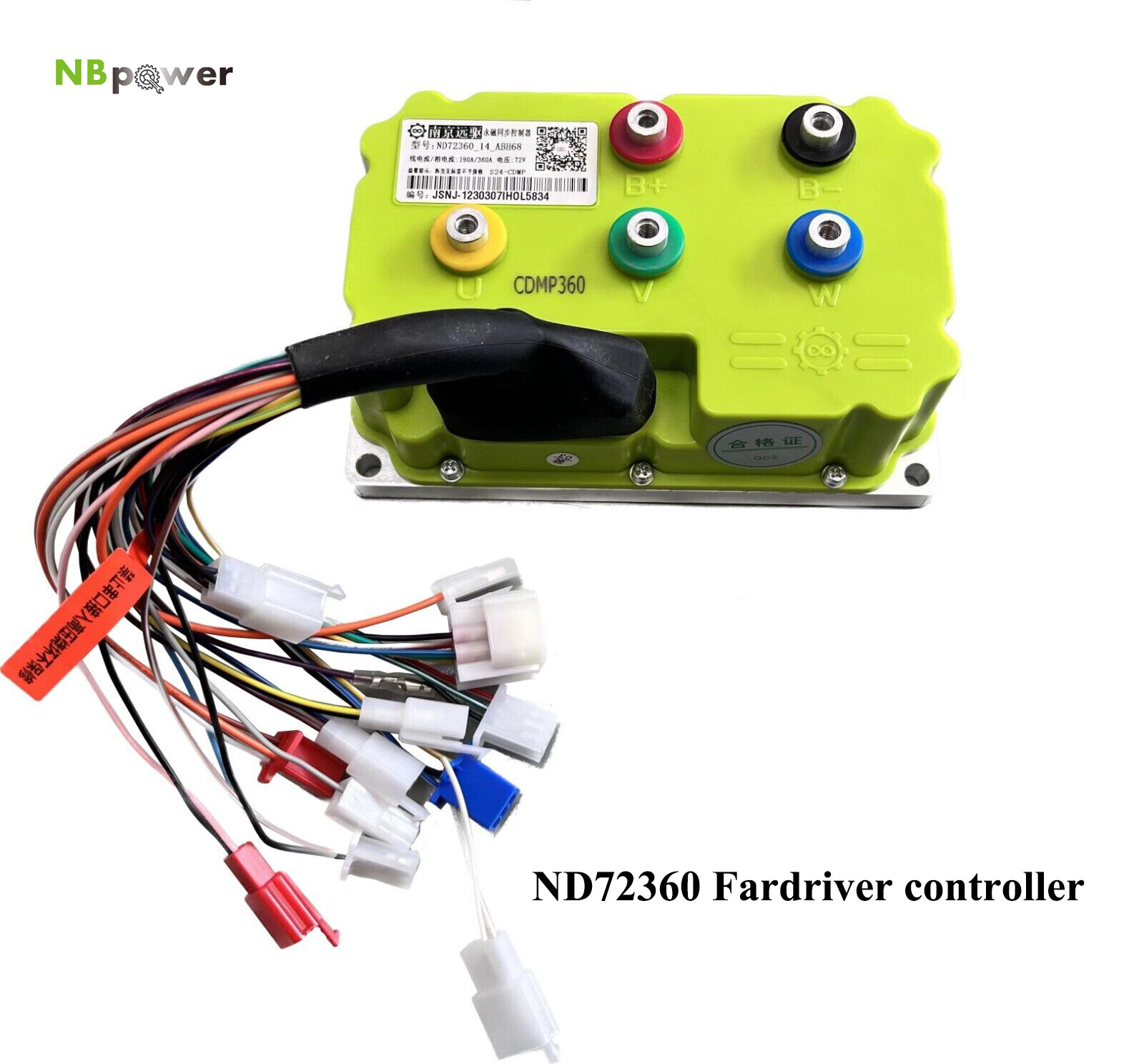

QS120 60H 2000W mid drive motor with gear box(1:2.35 radio)+ND72360 Fardriver Controller kit for ATV. Product Description QSMOTOR 120 60H 2000W V3 Mid Drive Motor with GearboxMotor Type:PMSM Inner Rotor Motor Brand:QS Motor, QSMOTOR Motor Design:Single axle Magnet Height:60mm, 5 pole pairs Rated Power:2000W Rated Voltage:72V Rated Speed:2800RPM Max Torque:2800RPM Gear Ratio:1:2.35 Cooling Mieshod:Air cooling Max Efficiency:93% Peak Battery Current:80A(72V) Thermic Probe:KTY83/122 Working Temperature:70-120℃，peak 150℃ Hall Sensor:Single Hall Set with waterproof connectors Phase Wire:8mm²Cross Section(not include insulation layer) Waterproof Grade:IP66 Color:Black N.W./G.W.:approx 8.5kgs Packape Dimension:32cm*32cm*34cm/piece Key Features1) Light weight and small dimension compare to hub motor2) High performance benefit from flux weakening3) High efficiency during climbing, and better acceleration4) Support regenerative braking Nanjing Fardriver Controller1Model: ND723602Working Communication: Hall Sensor3 Available Rated Battery Voltage: 48V/60V/72V4 Peak Battery Voltage: 88V5Available Motor Power: 2400W - 4000W6Defaut Throttle Working Voltage: 0V - 5V7Peak DC Current: 190A 8Peak Phase Current: 360A9Mosfets Detail: 24 FET10Weight: 2.2kgs11Instaliing Size: 189mm * 121mm * 65mm12Controller Design: Sine Wave BLDC13Case Material: Aluminum14 SupportProgrammable: PC & Phone15Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV Shipping and feedback1. Please check your name, address, and phone number is right.2.Shipping time：SpeedPAK StandardHanding time:7-10 business days.3. After you place a order, we will ship out your goods as soon as possible, please check the tracking timely.4. If you can't find the tracking, please let us know, we will provide a positive feedback to you.5.We will be appreciated of that you leave us a 5 star feedback if you are satisfied with our goods.6.If you have any problems with our goods, please contact us first!!! We will do our best service to help you.7.Any questions, don't hesitate to contact us.
