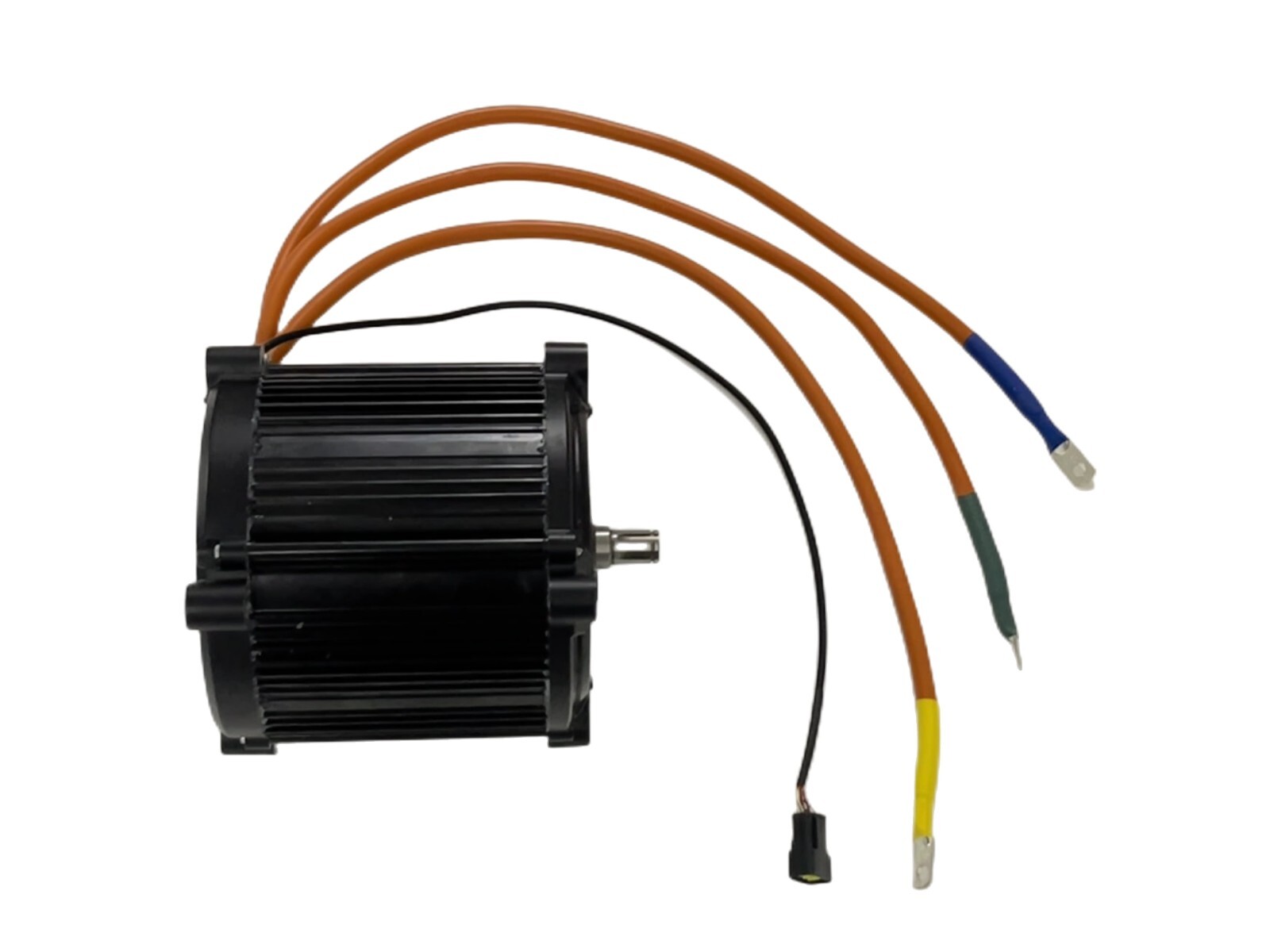

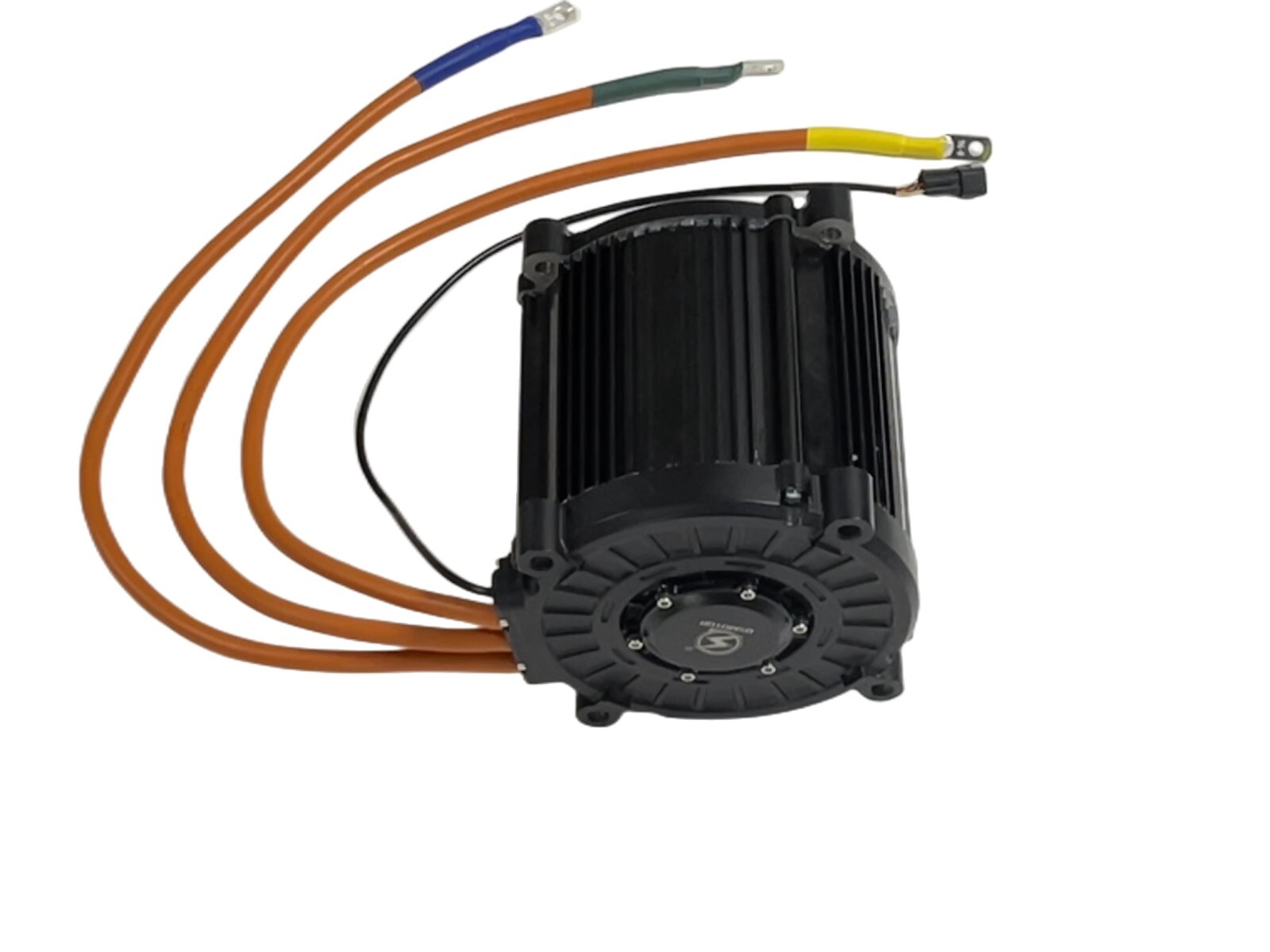

QS180 90H 8KW Mid Drive Motor For Electric Motorcycle with ND721200 Controller.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | NBPOWER |
| Color | Black |
| Voltage | 72V |
| Compatible Bike Type | Universal |
| Set Includes | Bare motor |
| Material | Aluminum Alloy |
| Item Length | 170 mm |
| Country/Region Of Manufacture | China |
| Battery Type | Lithium Ion (Li-Ion) |
| Item Weight | 50lb |
| Part Type | Motor |

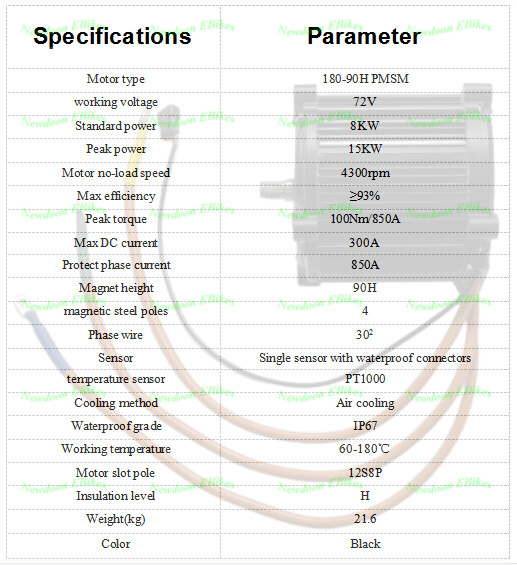

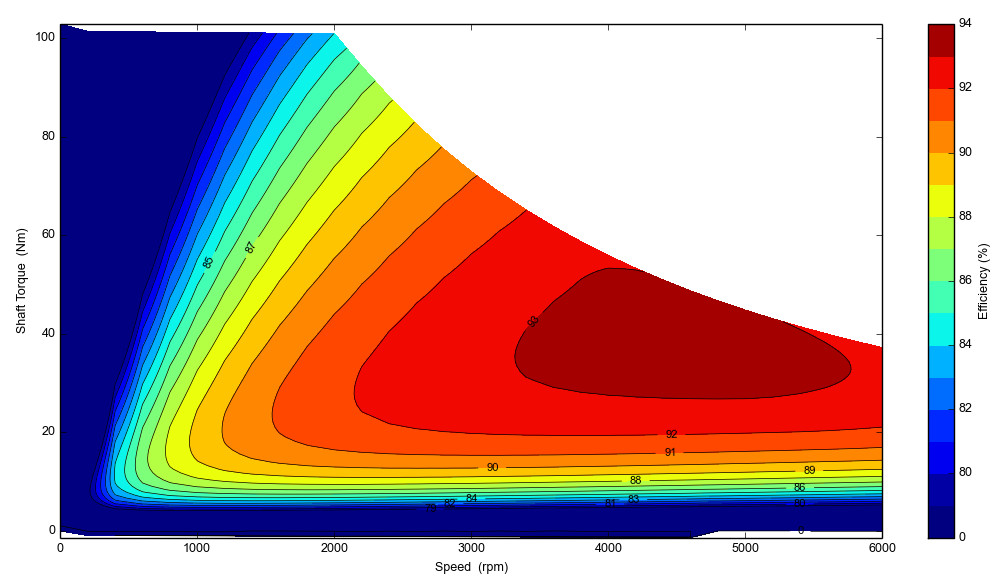

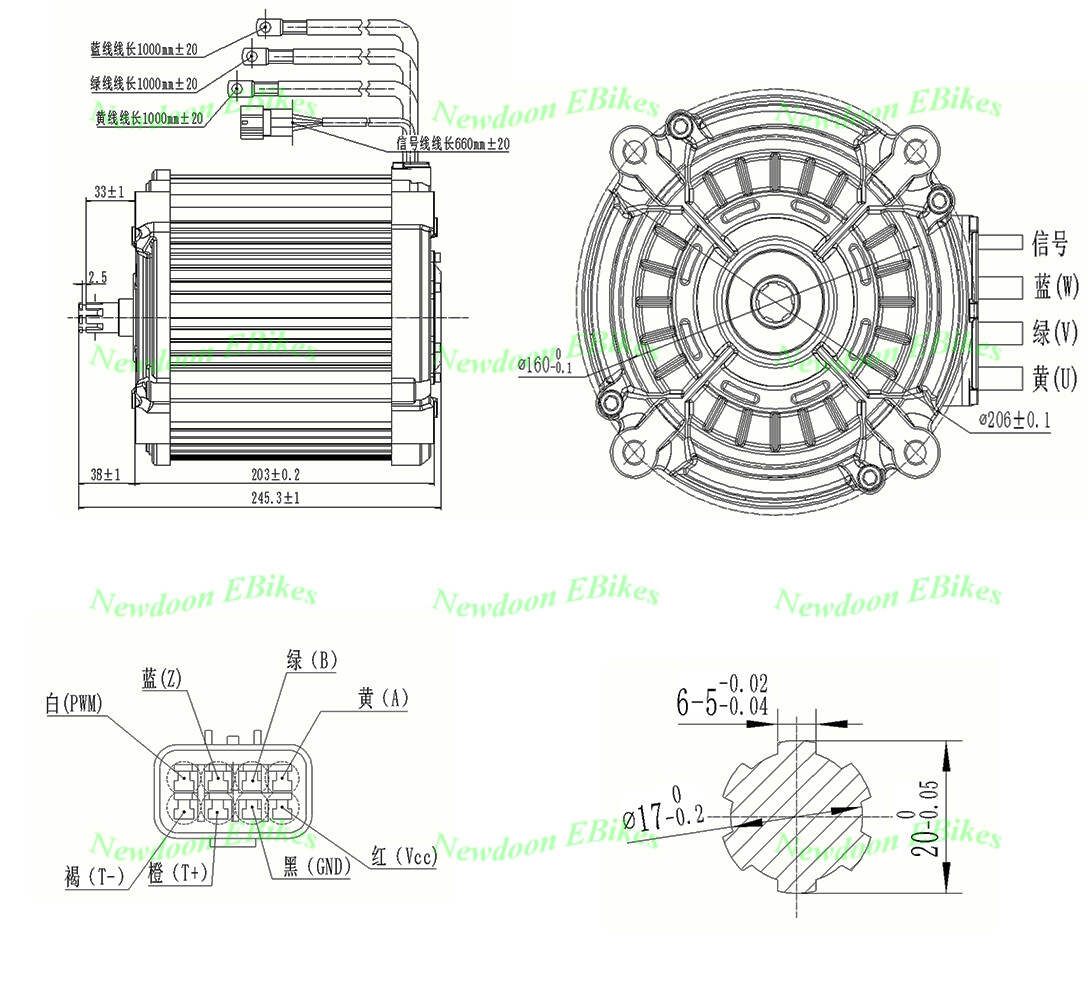

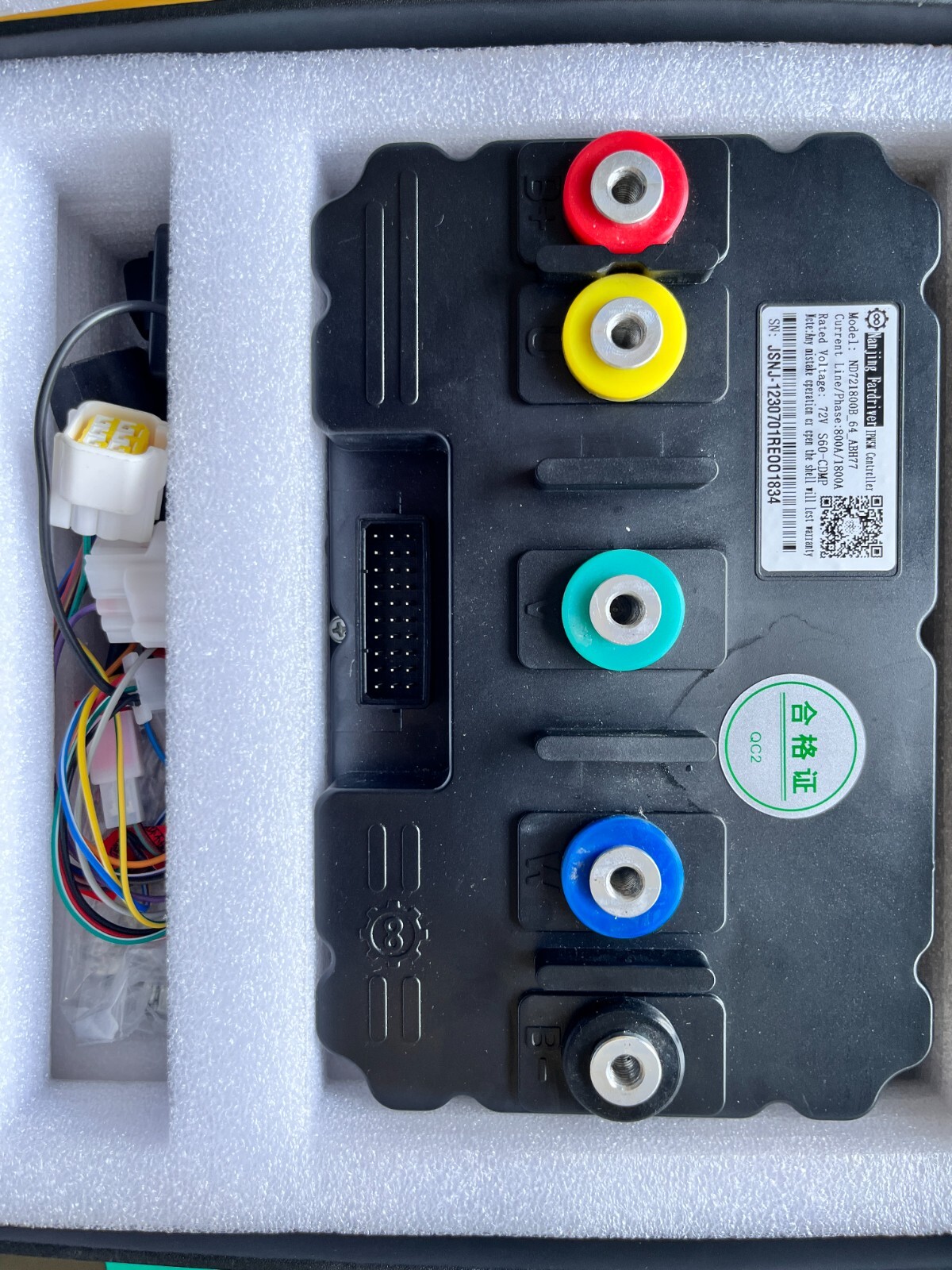

QS180 90H 8000W Mid Drive Motor For Adult Electric Motorcycle with ND721200 Controller Motor DescriptionMotor Type: PMSM Motor Rated Power: 8000W, (16KW peak in few seconds) Rated Voltage: 72V Speed: 4100RPM (basic RPM), 7000RPM peak with flux weakening Torque: Rated Torque 14.3N.m, Max Torque 94N.m Magnet Height: 90mm,4 pole pairs Max Efficiency: approx 94% Working Temperature: 70-120℃ , peak 150 ℃ Single Encoder Set with waterproof connectors Waterproof Grade: IP67 Cooling: Air cooling Thermic Probe: KTY83/122 Phase wire: 30mm² Color: Black N.W./G.W.: approx 24kg Package Dimension: 31cm*31cm*31cm Controller SPEC 1 Model: ND721200 Fardriver controller 2 Working Communication: Encoder Sensor 3 Available Rated Battery Voltage: 72V 4 Peak Battery Voltage: 100V 5 Available Motor Power: 10KW - 12KW 6 Default Throttle Working Voltage: 0V - 5V 7 Peak DC Current: 500A - 600A 8 Peak Phase Current: 1200A 9 Mosfets Detail: 60 FET 10 Weight: 5kgs 11 Installing Size: 238mm * 155mm * 72mm 12 Controller Design: Sine Wave BLDC 13 Case Material: Aluminum 14 Support Programmable: PC & Phone 15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV Key Features1) Light weight and small dimension compare to hub motor 2) High performance benefit from flux weakening 3) High efficiency during climbing, and better acceleration 4) Support regenerative braking Package list:1*QS180 90H 8000W mid drive motor1*ND721800 /ND721200 Fardriver controller1*Bluetooth module(as default) for Cell Phone Shipping and Feedback:1. Please check your name, address, and phone number is right.2.This Mid drive motor kit will be shipped from China by Standard shipping, it takes about 7-10 business days .3. After you place a order, we will ship out your goods as soon as possible, please check the tracking timely.4. If you can't find the tracking, please let us know, we will provide a positive feedback to you.5.We will be appreciated of that you leave us a 5 star feedback if you are satisfied with our goods.6.If you have any problems with our goods, please contact us first!!! We will do our best service to help you.7.Any questions, don't hesitate to contact us.
